SPECIFICATIONS



Brand Name: AlgoLaser

Model Number: AlgoLaser DIY Kit

Certification: CE

Certification: ce

Is Smart Device: no

Engraving Area: 400x400mm

Motherboard: 32-bit dual-core motherboard

Wave Length: 445±5nm

Engraving Speed: 0-12,000MM/Min

Control Softwares: LaserGRBL (free), LightBurn (Paid Software), APP

Input Format: BMP, JPG, PNG, NC, DXF, SVG, etc.

Features: Support Offline Control

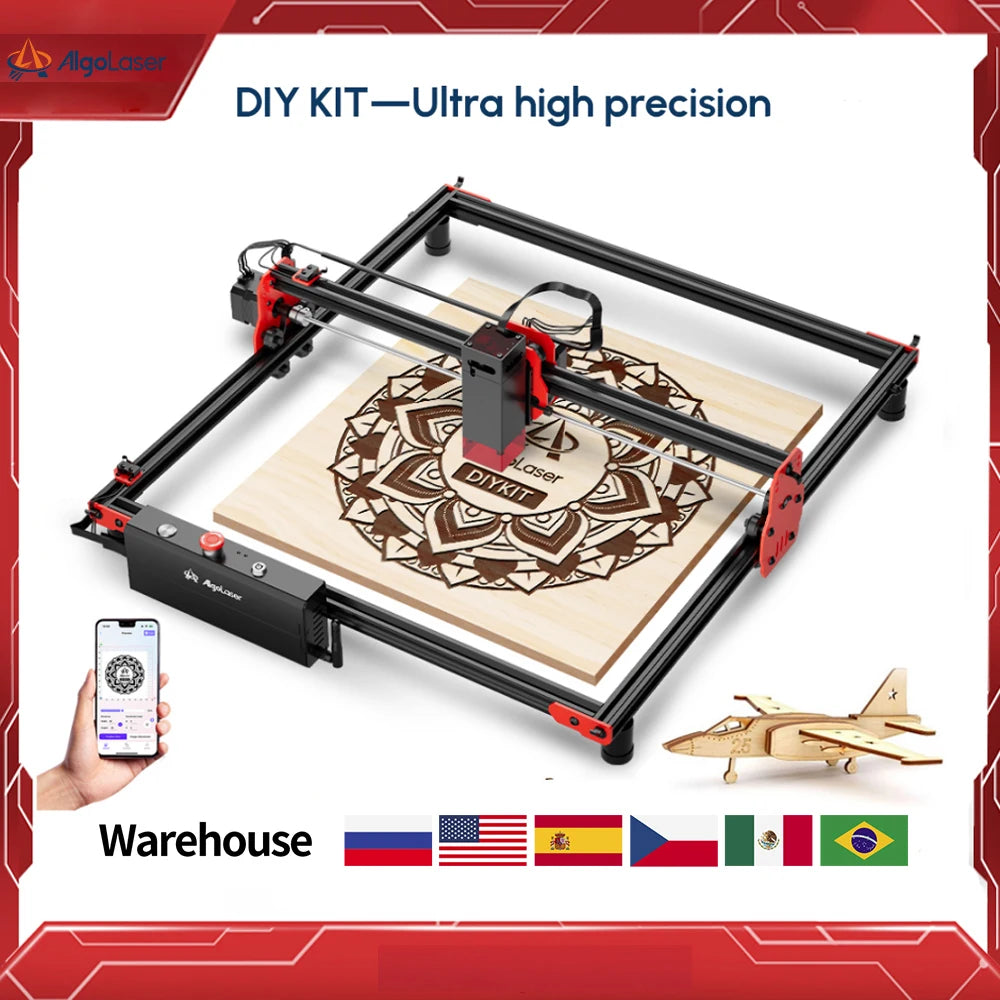

Algolaser DIY Laser Graving Engraving Cutting Machine Diode CNC Wood Engraver Desktop Metal Cutter Woodworking Tools Leather DIY



Algolaser DIY Laser Graving Engraving Cutting Machine Diode CNC Wood Engraver Desktop Metal Cutter Woodworking Tools Leather DIY

Feature:

Motherboard:ALGOLASER_DIY_KIT_V1.2

Engraving area: 400*400mm

With Expand kits Engraving area :400*800mm(need to order separately)

Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP

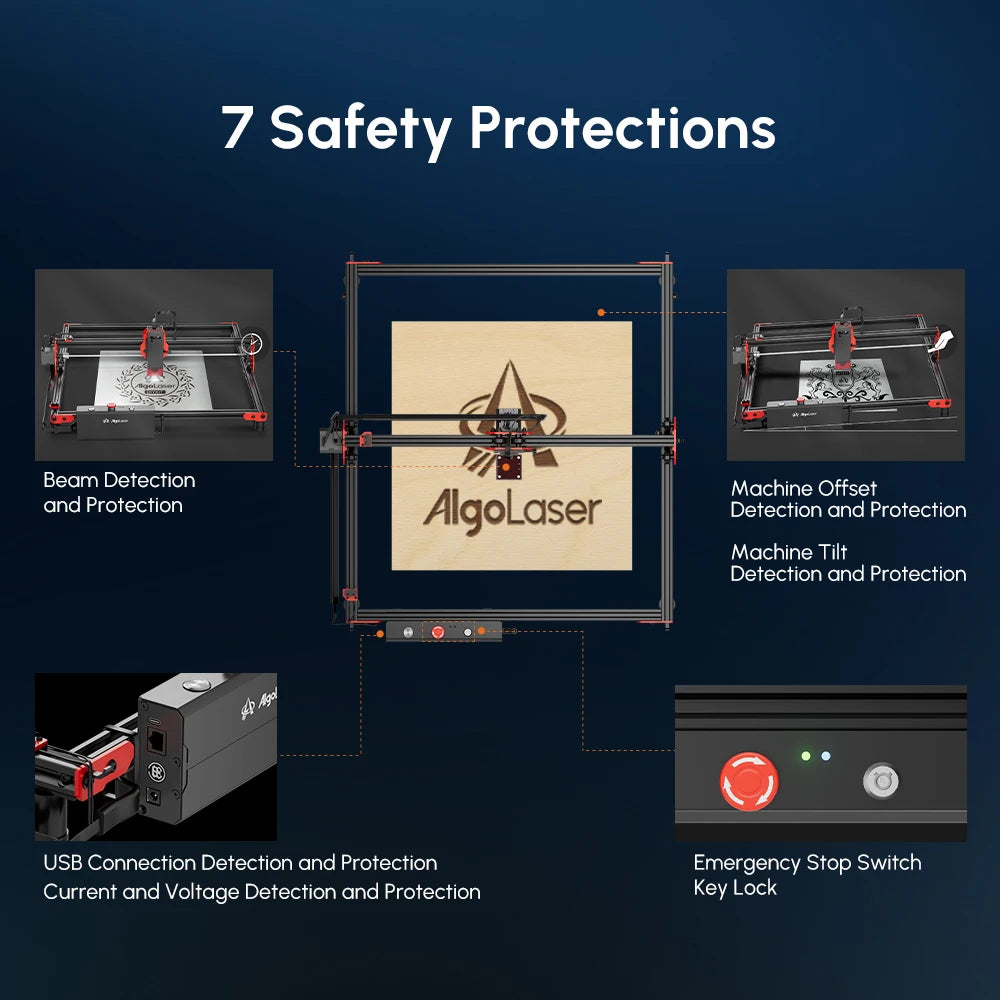

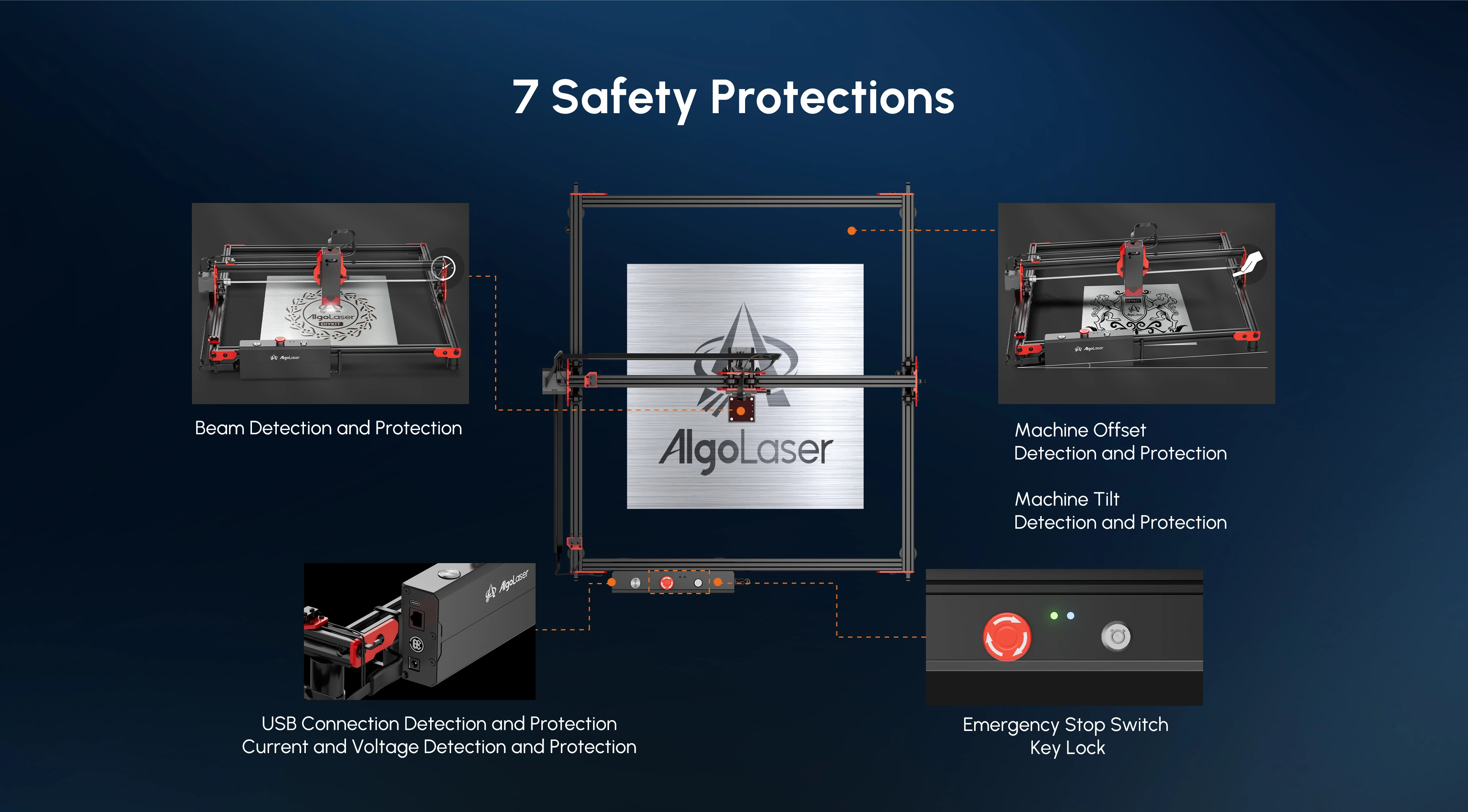

Safety Precautions:

Machine Offset Detection and Protection

Machine Tilt Detection and Protection

USB Connection Detection and Protection

Beam detection and protection

Current and Voltage Detection and Protection

Emergency Stop Switch

Key Lock

Frame Materials:Aluminum Profile

Motors:NEMA 42 Stepper Motors

Mechanical Precision:Y:12.5um，X:12.5um

Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)

Engraving Area:X400mm*Y400mm

Electric Power:72W

Luminous Power: 5,000-5,500mw

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

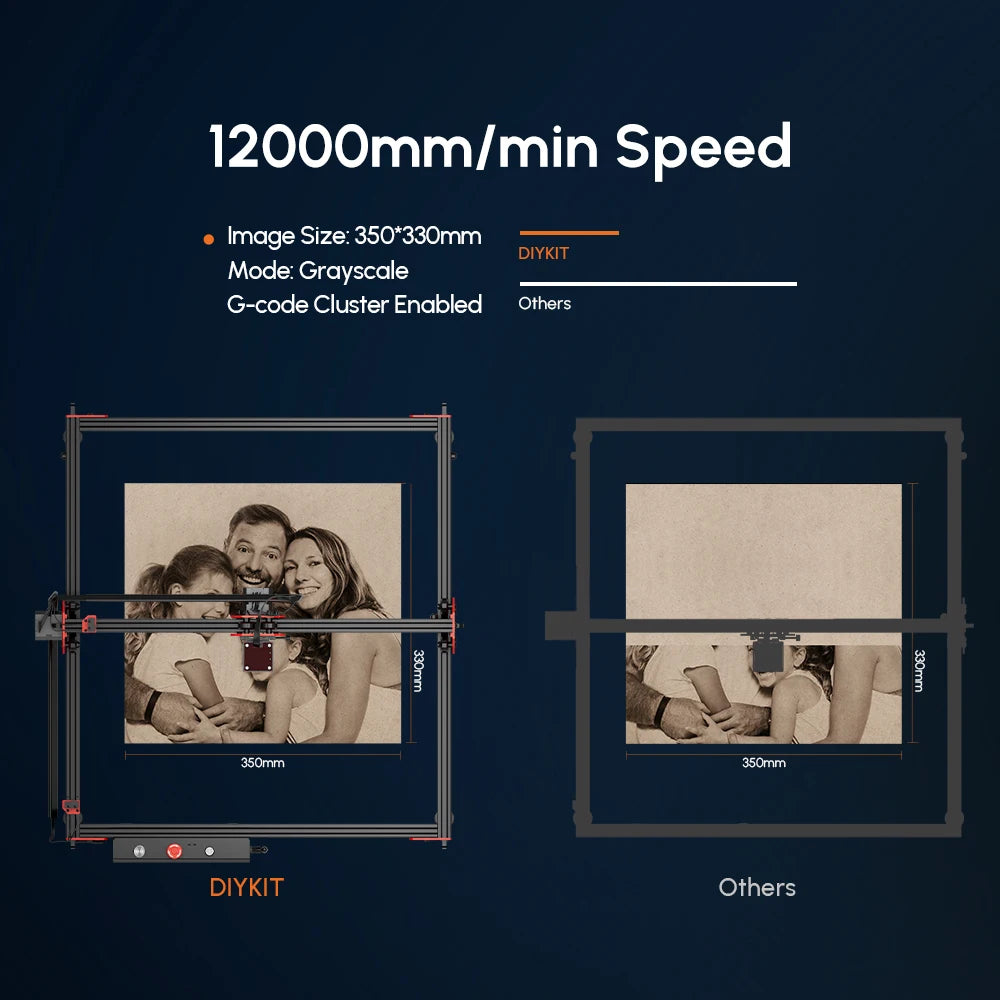

Engraving Speed:0-12,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

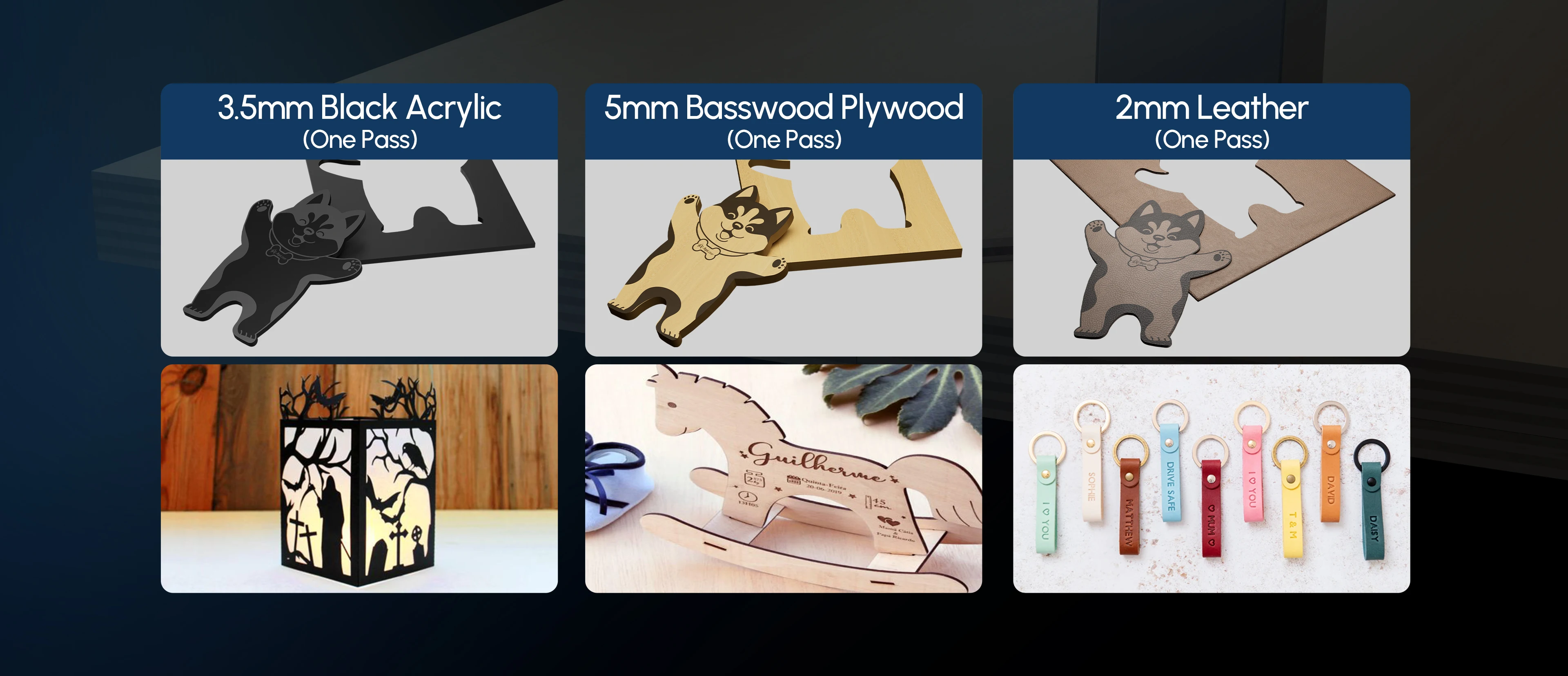

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃





ADVANTAGES:

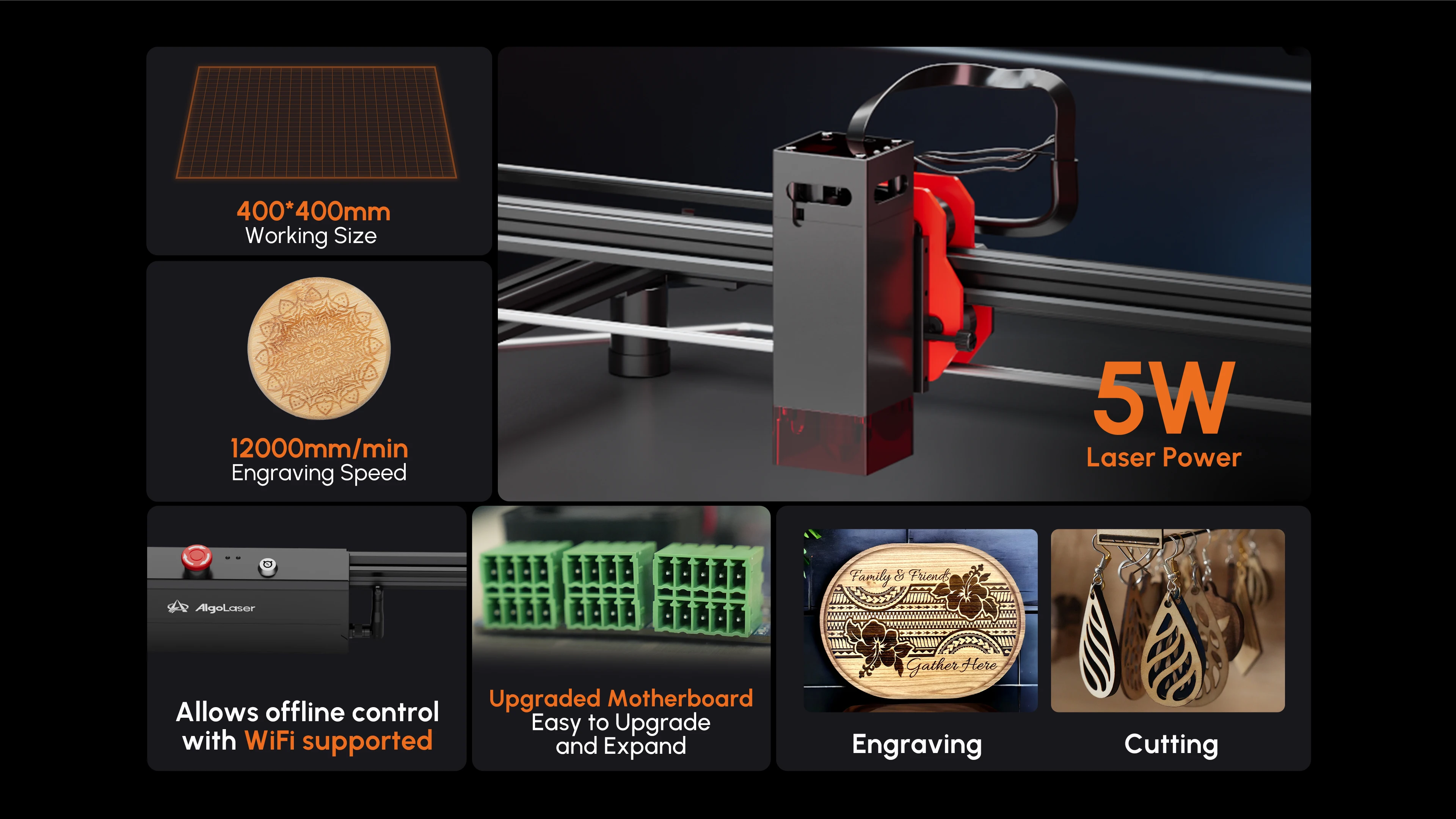

Latest Laser Beam Shaping Technology: Algolaser DIY Kit uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

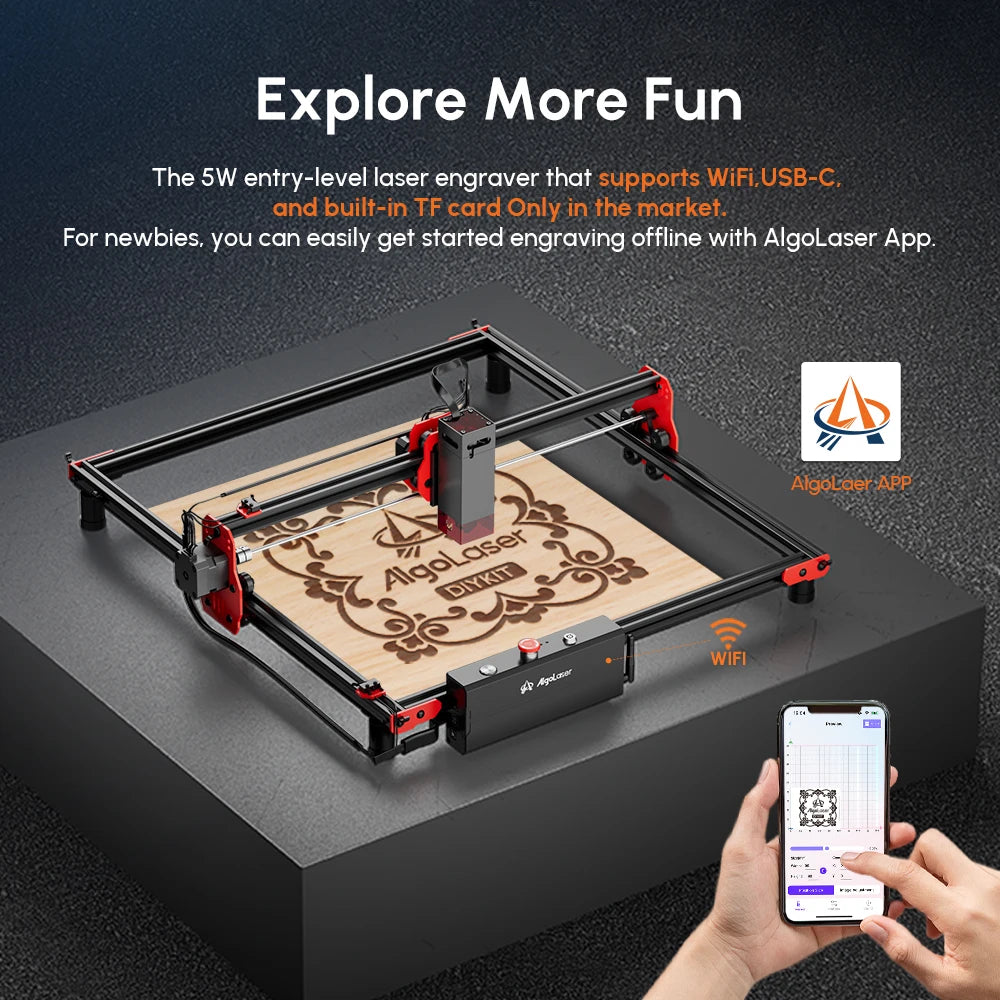

Offline Control: Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.



Upgraded 32-bit Motherboard/Dual-core CPU: Deliver significant speed boost, achieving an impressive 32% higher CPU performance and 50% improved energy efficiency.8MB RAM, 8MB storage memory, and a built-in 32GB SD card

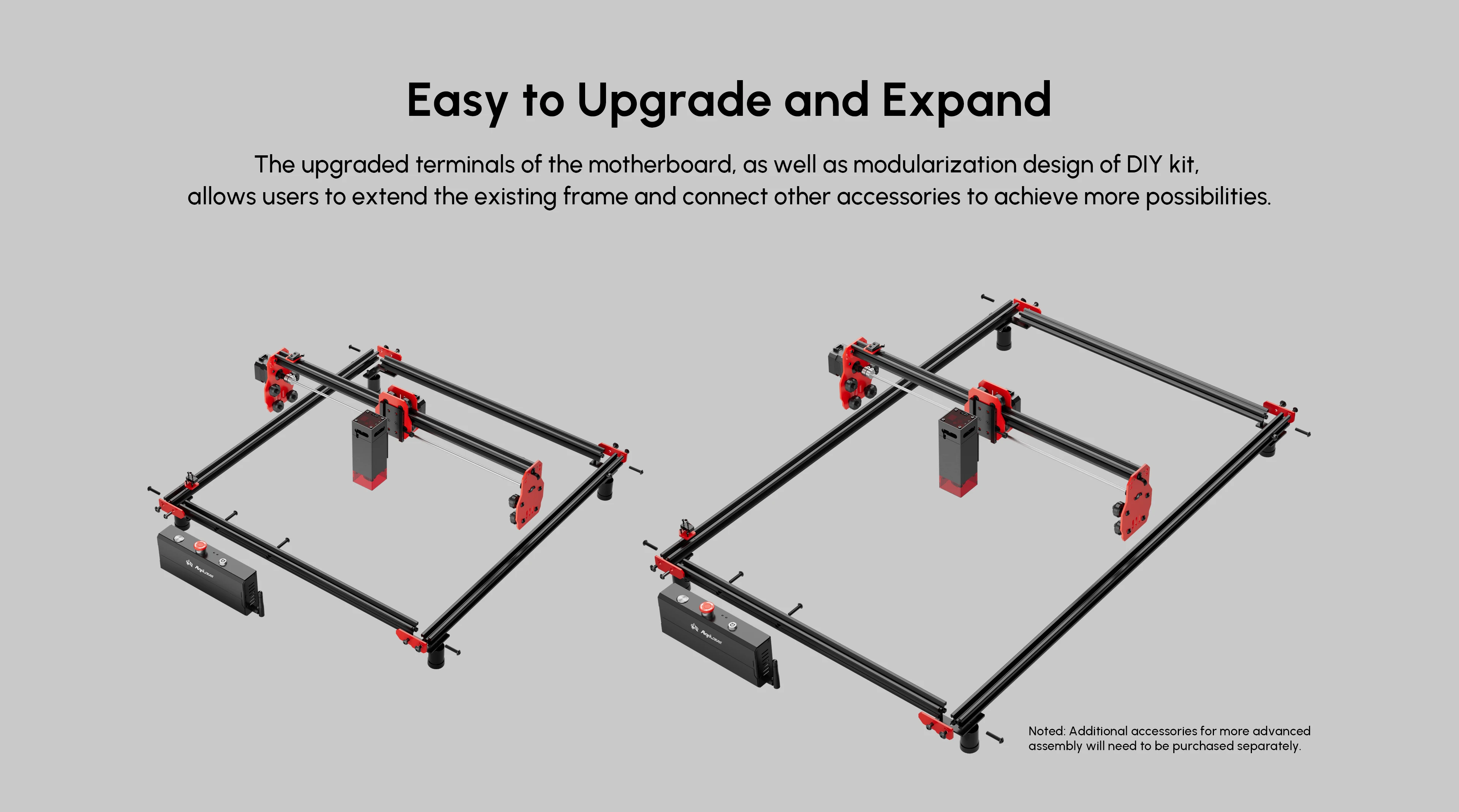

Easy to Upgrade and Expand: The upgraded terminals of the motherboard, as well as modularization design of DIY kit, allows users to extend the existing frame and connect other accessories to achieve more possibilities.


User-friendly Installation: There are few cables need to connect and each one it's just the right length for its position. The assembly takes only 10~25 mintutes with instruction help, even for newbies.



Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.
