SPECIFICATIONS



Number of Panels: 1

Flexible Solar Panel: No

Foldable Solar Panel: No

Type: Solar Panel

Module Efficien: 24%

Model Number: Solar panel

Size: 1160*700*25mm /1160*530*25mm

Material: Monocrystalline Silicon

Nominal Capacity: 200W /120W

Number of Cells: 36 cell

Max. Power: 200W /120W

is_customized: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

200W Solar panel size: 1160*700*25mm

120W Solar Panel size: 1160*530*25mm

200W Solar panel Voc: 23.76 V

200W Solar panel Vmp: 31.68V

120W Solar panel Voc: 18V

120W Solar panel Vmp: 21.6V

120W Solar panel Imp: 6.5A

200W Glass Solar Panel and 120W Rigid Photovoltaic Solar Panel System for Balcony Home charging battery Outdoor power supply

19.8V 200W 18V 120W Glass Solar Panel Rigid Photovoltaic Panel System for Balcony Home Romodulel for charging many types battery

This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing, irrigation, battery charging etc. Nice for both indoor and outdoor use. What are you waiting for? Just come and buy.

Note: tempered glass

Features:

Solar energy, eco-friendly, energy inexhaustible, cost-saving and user-friendly.

High conversion monocrystalline solar panel for safe & endurable use.

Portable and compact design fit for both outdoor and indoor usage.

Rechargeable, no extra wires and IP65 water resistance ensures it can be used in bad weather.

Perfect and safe to use in various applications, such as home, industrial, commercial etc.

Maximum power(Pmax)                   200W

Vmp(Voltage at Max Power, V):    31.68V

Voc(Voltage at Open Circuit, V):   23.76 V

Output Tolerance:                              ±5%

Diode:                                                  2 By Pass

Junction Box:                                     IP67 Rated

Temperature range:                         -20℃-+80℃

Frame: Heavy & Solid Aluminum Alloy

Kind of Glass:                   3.2mm Tempered glass

Output Cable: 2.5mm²/14AWG 90mm/3.54＂

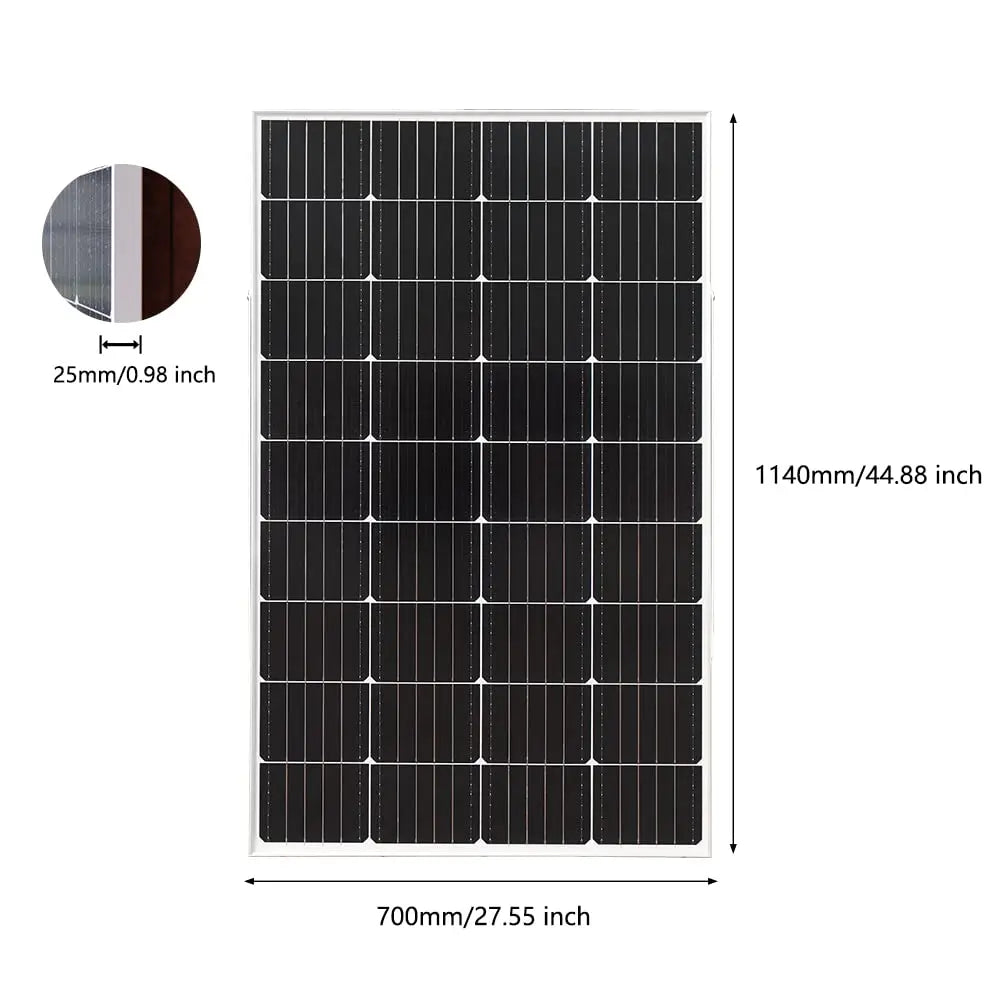

Dimensions:                            1140*700*25mm

Weight: 7.96kg

Max System Voltage : 1000V DC(IEC)/600V DC (UL)

STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5

Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)

Corrosion resistant aluminum frame allows extended outdoor use; the panels can last for decades

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing etc. Nice for both indoor and outdoor use.

Note: tempered glass
Features:
Solar energy, eco friendly, energy inexhaustible, cost saving and user friendly.
High conversion monocrystalline solar panel for safe & endurable use.
Portable and compact design fit for both outdoor and indoor usage.
Includes an alligator clip that fits to the power supply for different equipment.
Rechargeable, no extra wires and IP65 water resistance ensures it can be used in bad weather.
Perfect and safe to use in various applications, such as home, industrial, commercial etc.

Specification of 120w

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Short circuit current(Isc) 6.8 A

Maximum power current(Imp) 6.5A

Cell efficiency 22%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 5600g

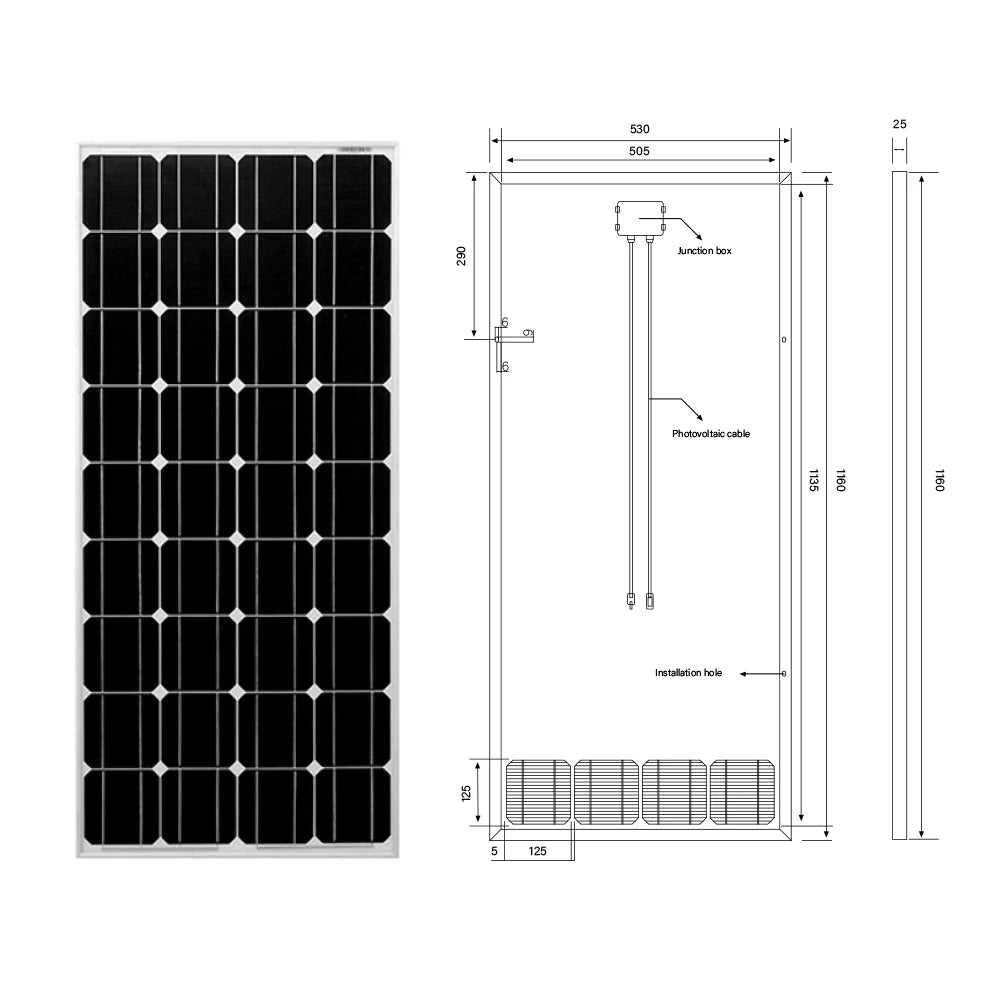

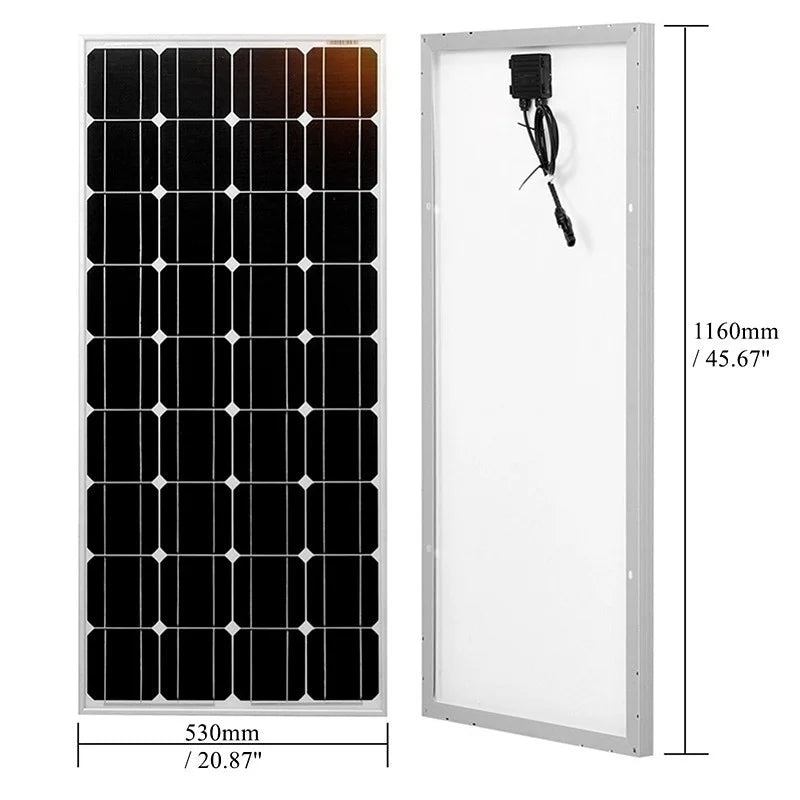

Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

Solar panel and bracket mounting diagram

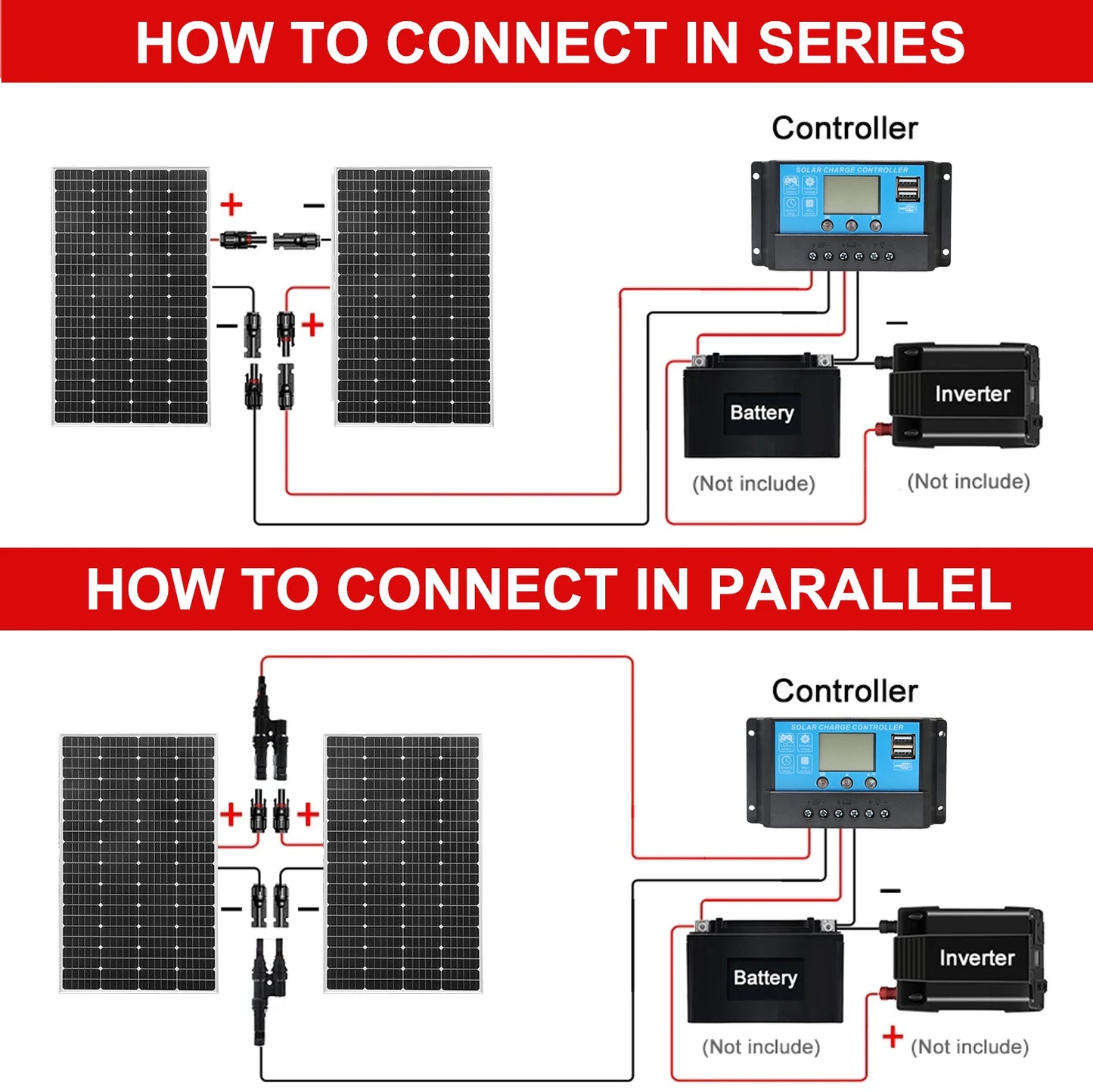

Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.

Solar panels can be used for grid-tied solar panel systems

Solar panels can be connected to a DC water pump for power
