SPECIFICATIONS

Number of Panels: 1

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Type: Solar Panel

Module Efficien: 24%

Model Number: solar panel

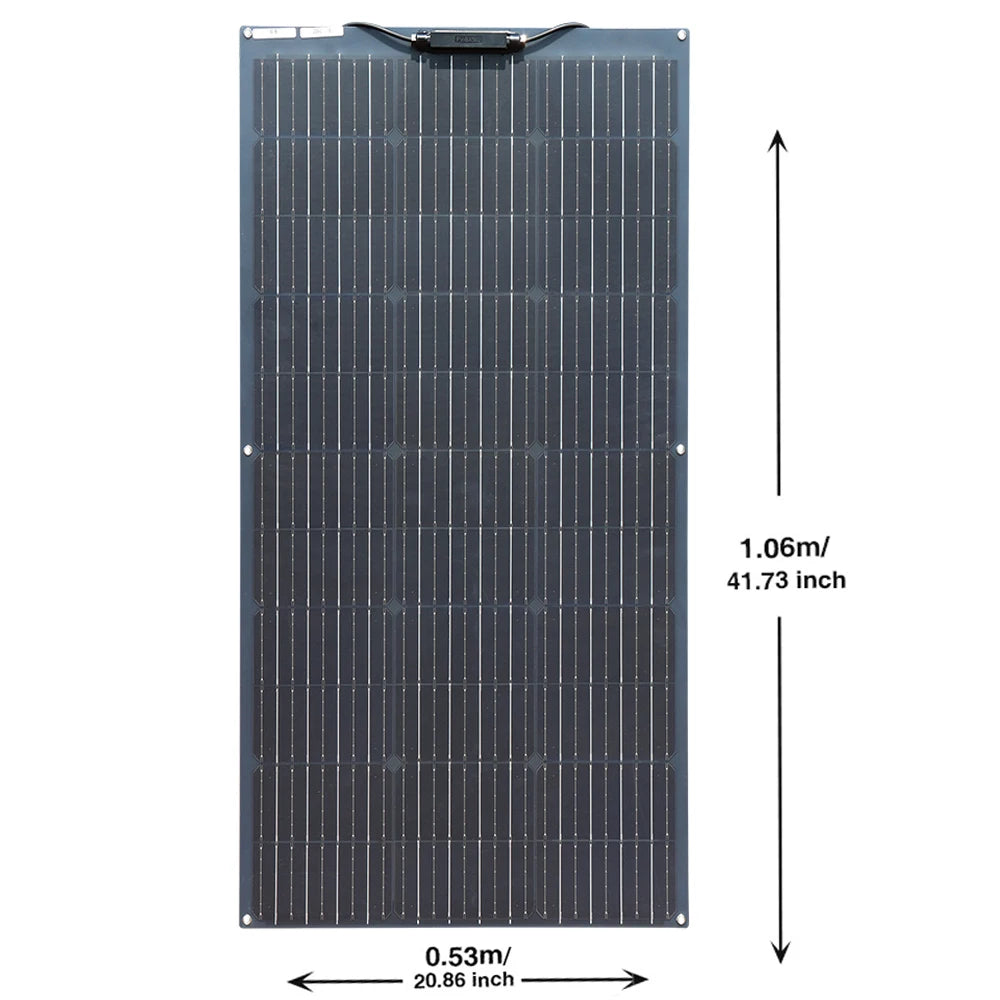

Size: 1050*540*2.5mm

Material: Monocrystalline Silicon

Nominal Capacity: 100W ,120w, 200w

Number of Cells: 32 cell

Max. Power: 100 watt / 120 watt / 200 watt

is_customized: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

100W SolarPanel Only: 16V 100W Fexible Solar Panel

100W solar panel kit: Connect 12v battery

200W solar panel kit: Connect 12v or 24V battery

120W SolarPanel Only: 18V 120W Fexible Solar Panel

features 1: high efficiency solar cells

features 2: portable solar panel

features 3: Flexible Solar Panel

features 4: six metal reinforced mounting holes

features 5: Built in blocking diode to prevent battery discharge at night

Photovoltaic solar panels: Off-grid



Xinpuguang 100 W flexible solar panel kit 12v 100 watt 120w 200w for Home Yacht RV Caravan Cabin Boat and 12v Battery Charger



Specification

Maximum power(Pmax) 100W

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.2V

Short circuit current(Isc) 6.87A

Maximum power voltage(Vmp) 16V

Maximum power current(Imp) 6.25A

Number of cells 32pcs

Weight 1.8KG

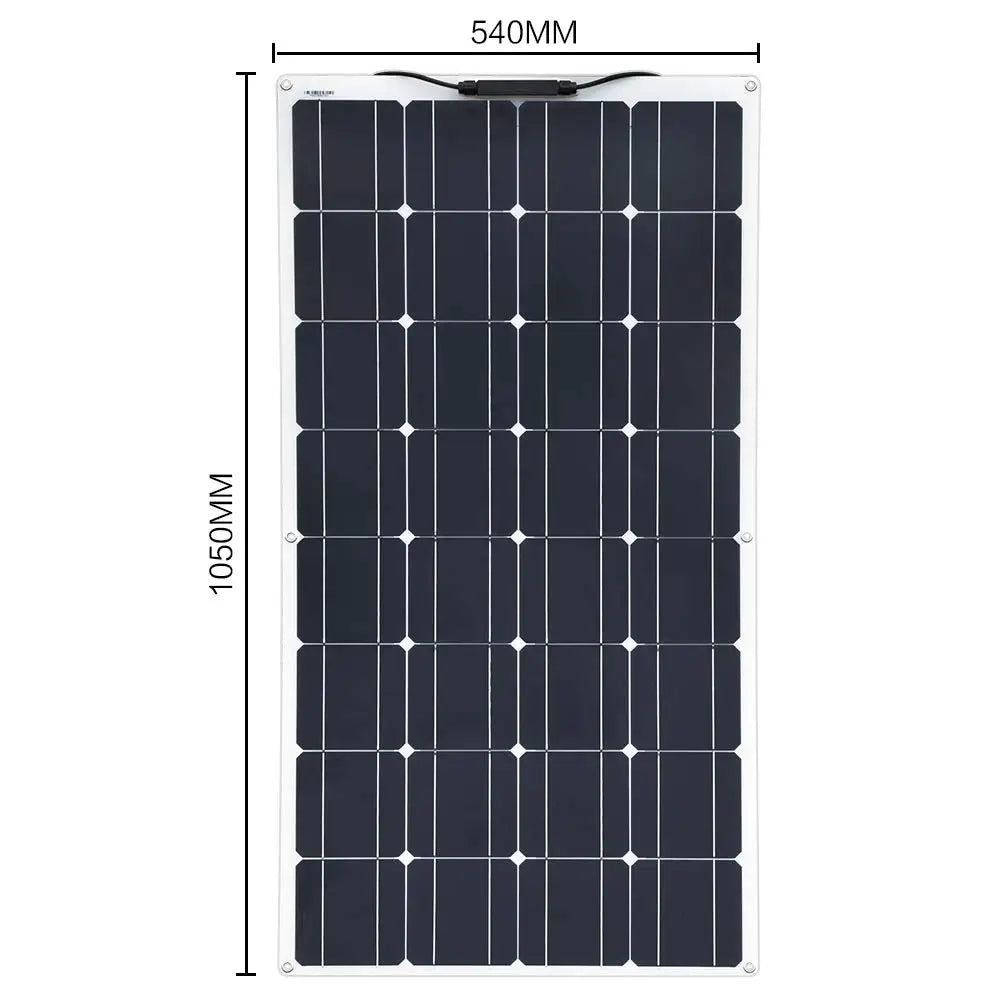

Size 1050*540*3 mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

High efficiency

High efficiency single crystal solar panel, conversion of solar panel is protected to 21%

Bypass diodes minimize shadow power loss and provide excellent performance in dark environments

Super lightweight

Thanks to advanced polymer materials, the product weighs 70% lighter than traditional solar panels, making it much easier to carry, transport and install.

Ultra-thin

You will hardly notice that it is thin. The solar panels are flat because they are only 1/10 inch high. The panels are about 95% thinner than their rigid panels, making them ideal for stealth solar equipment that fits perfectly on the roofs of yachts and caravans.

It is easy to install and can be installed with glue, screws and corner guards (for fixing and mounting screws).

Rounded corners prevent scratches

Widely used applications: golf carts, yachts, ships, caravans, electric cars, tourist cars, police cars, roofs, camping, rooftop power generation, tents, backpacks, portable generator sets and more.


The flexible solar panel can be bent 20 degrees, suitable for yachts, motor homes and has a corresponding tilt

IP67 waterproof junction box, encapsulant inclusion, waterproof level reaches IP68, and can handle rainy weather and seawater except for joints.

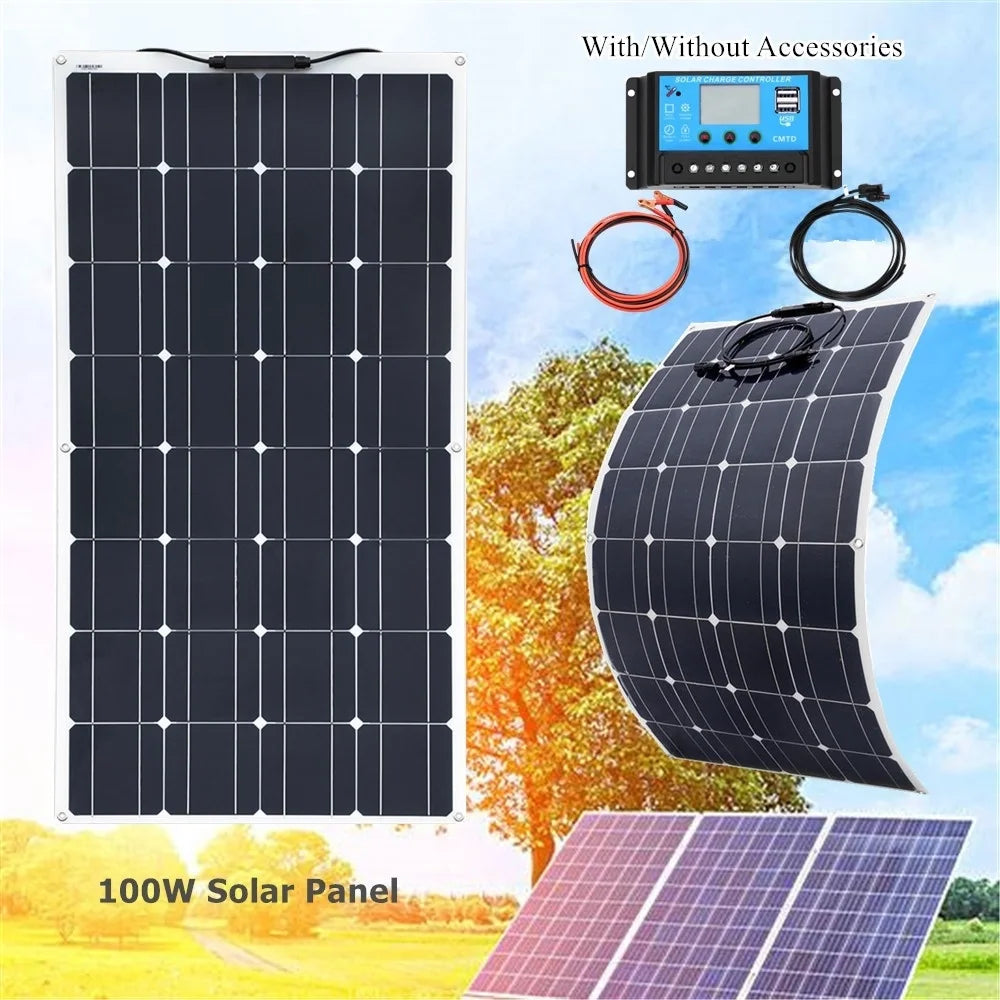

（100W Solar Panel Only）Package Includes:

1. 1 pcs flexible solar panel

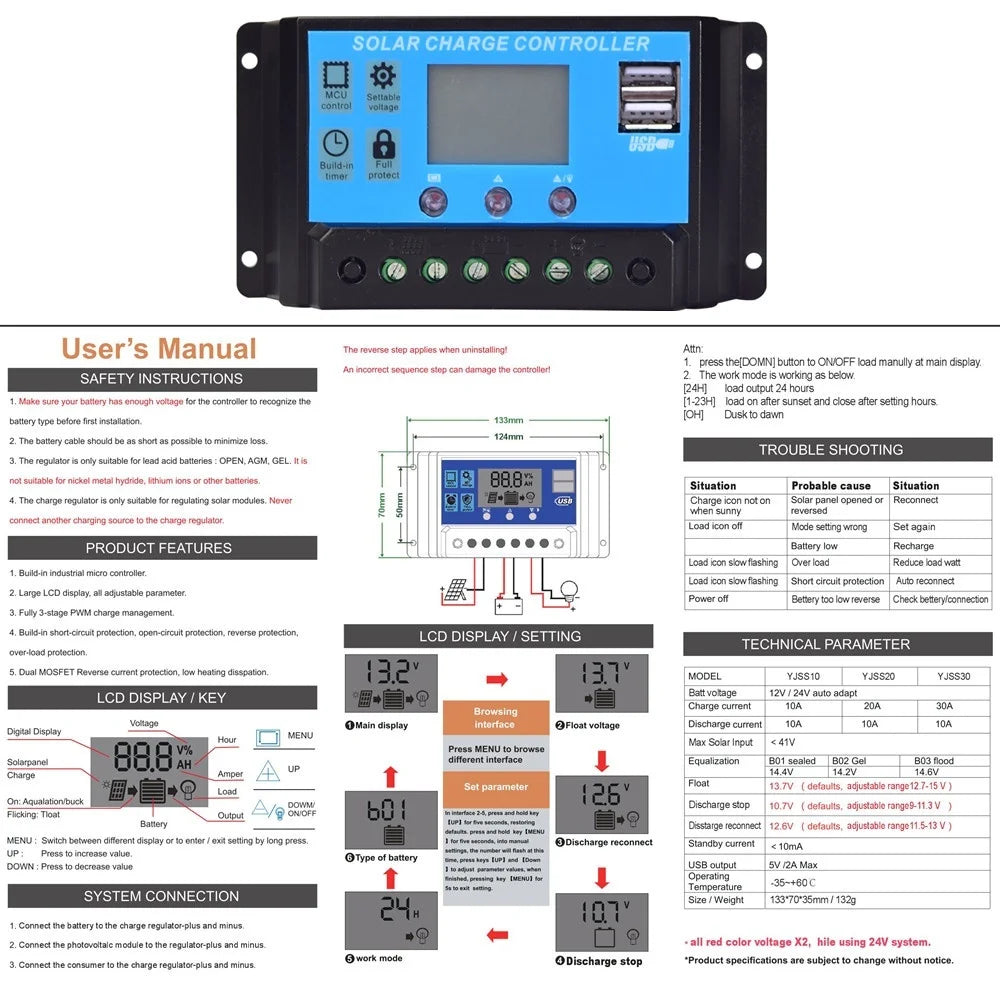

2. 1pcs 12v/24v/10A controller

3. 1 set 3m cable with PV connector(2.5mm2)

4. 1 set 3m cable with Alligator clip(2.5mm2)

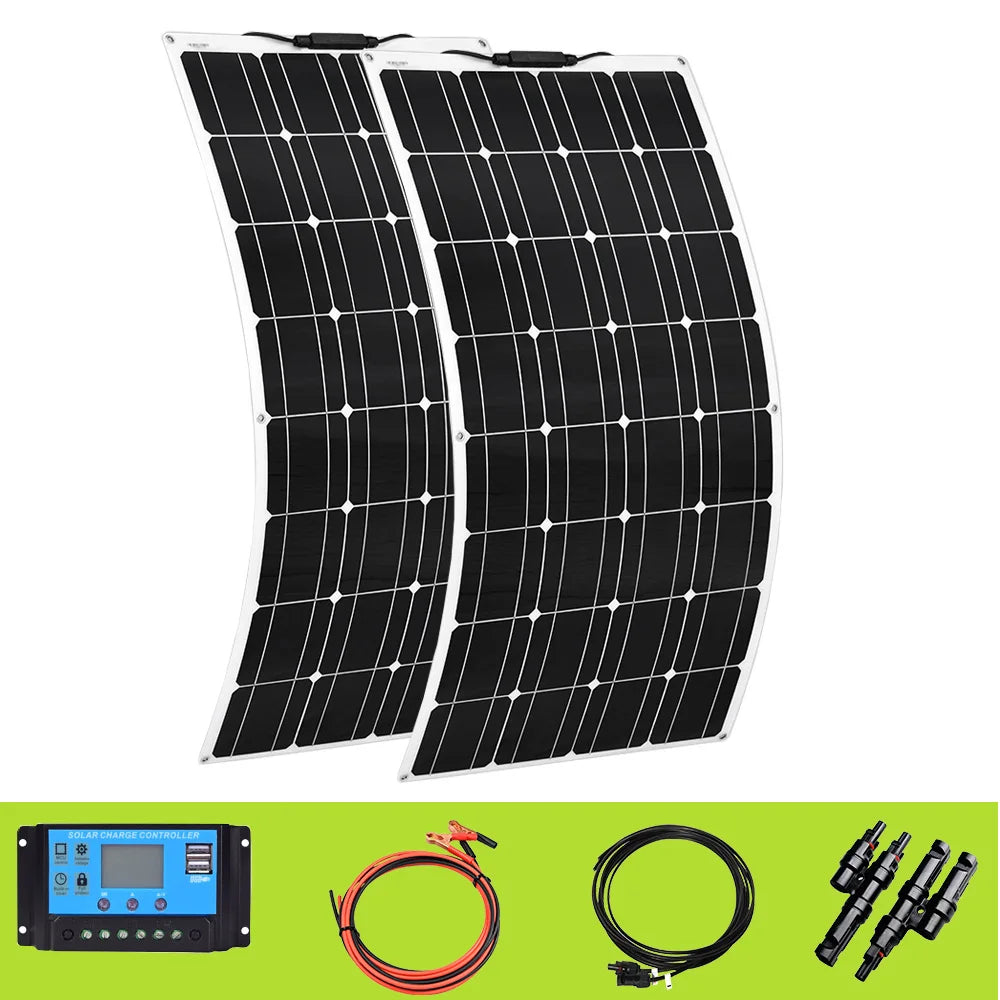

（200W Solar kit）Package Includes:

1. 2pcs 100w solar panel

2. 1pcs 12v/24v/20A controller

3. 1 set 3m cable with PV connector(2.5mm2)

4. 1 set 3m cable with Alligator clip(2.5mm2)

5. 1 set 2 in 1 adapter

18V 120W Solar panel Specification

Maximum power(Pmax) 120W
Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.8 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 6.6A

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 2200g

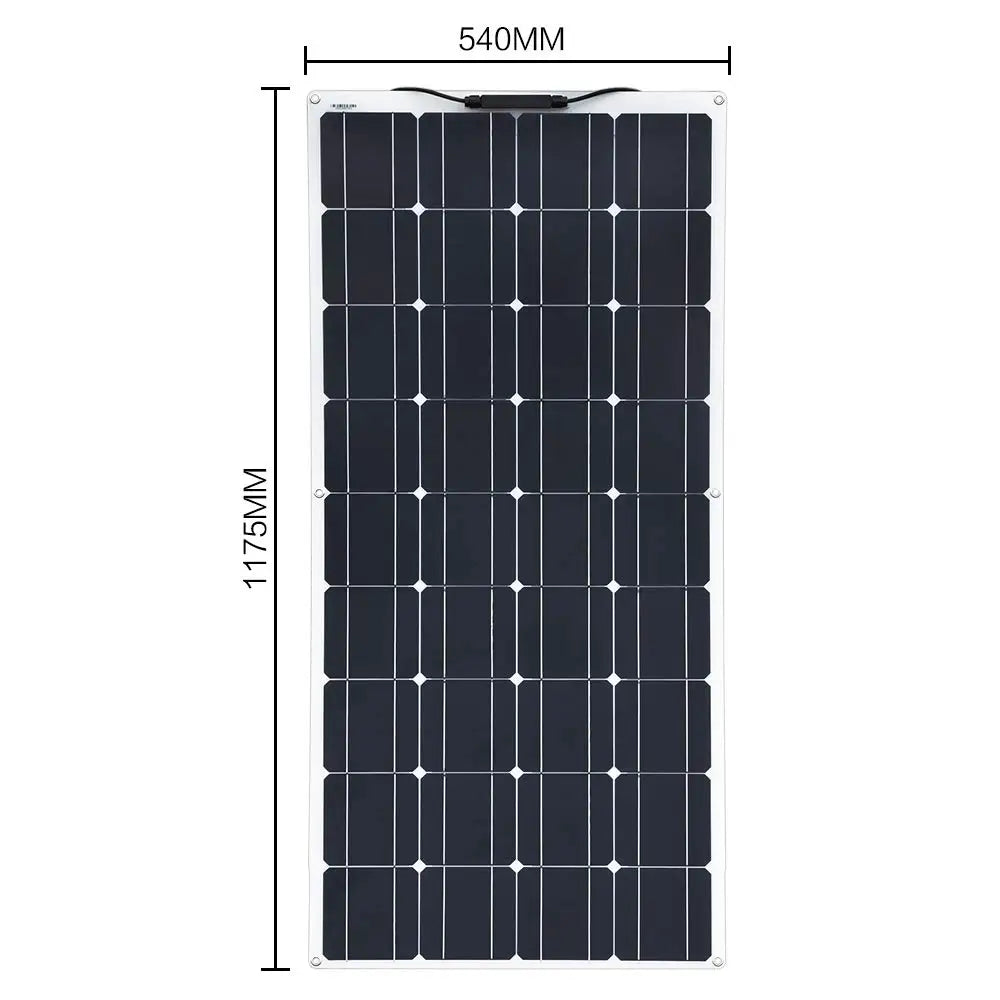

Size 1170*540*3 mm

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Solar panel

- It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead acid battery.

- It is waterproof and can be placed outdoors.

- There are built-in diodes in the Junction Box to help prevent reverse charging.

- You can install this item in your car and keep charging during the day.

- Provides 2 alligator clips and charging cable for all kinds of equipment, emergency lights, advertising lights, traffic lights, electric fans, solar water pumps, motorcycles, boats, etc.

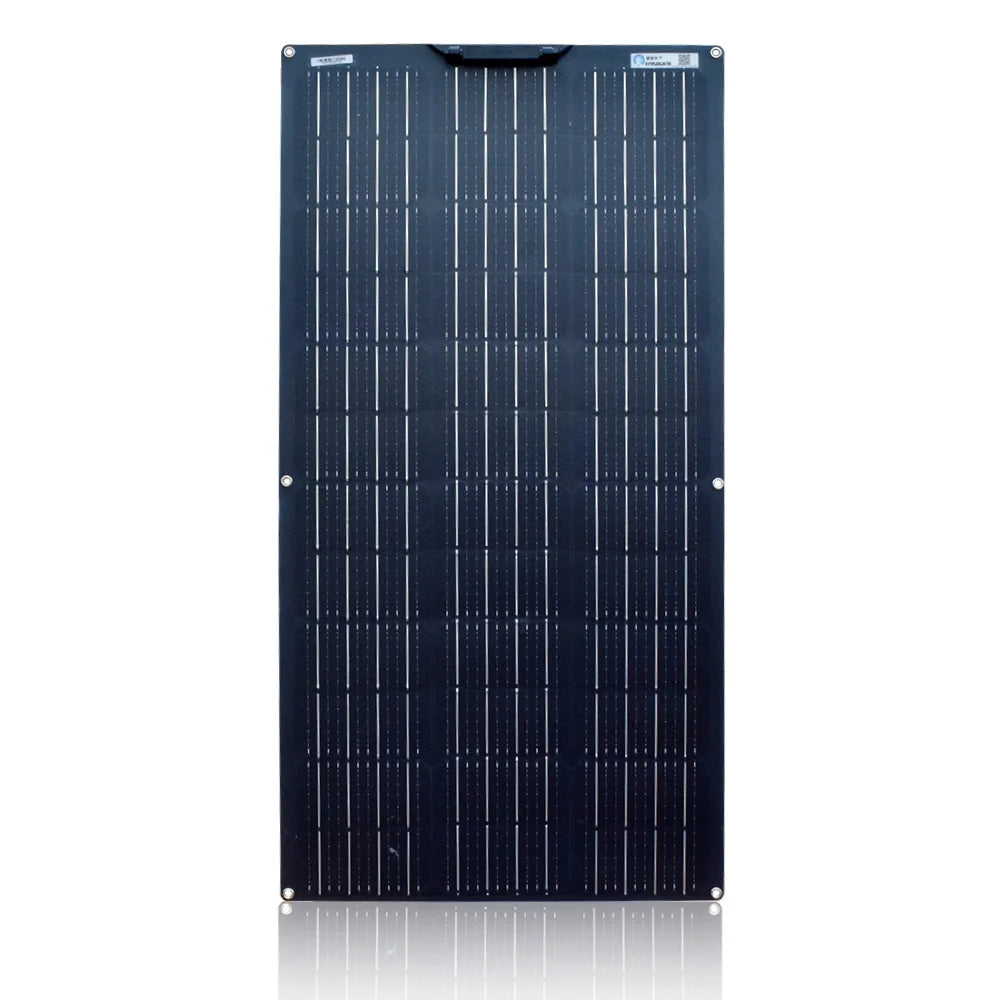

18V 100W Black( 18 V 100 watt Black solar panel)

Maximum power(Pmax) 100W
Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.11 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 5.55A

Cell efficiency 21%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 1850g

Size 1030*525*3 mm

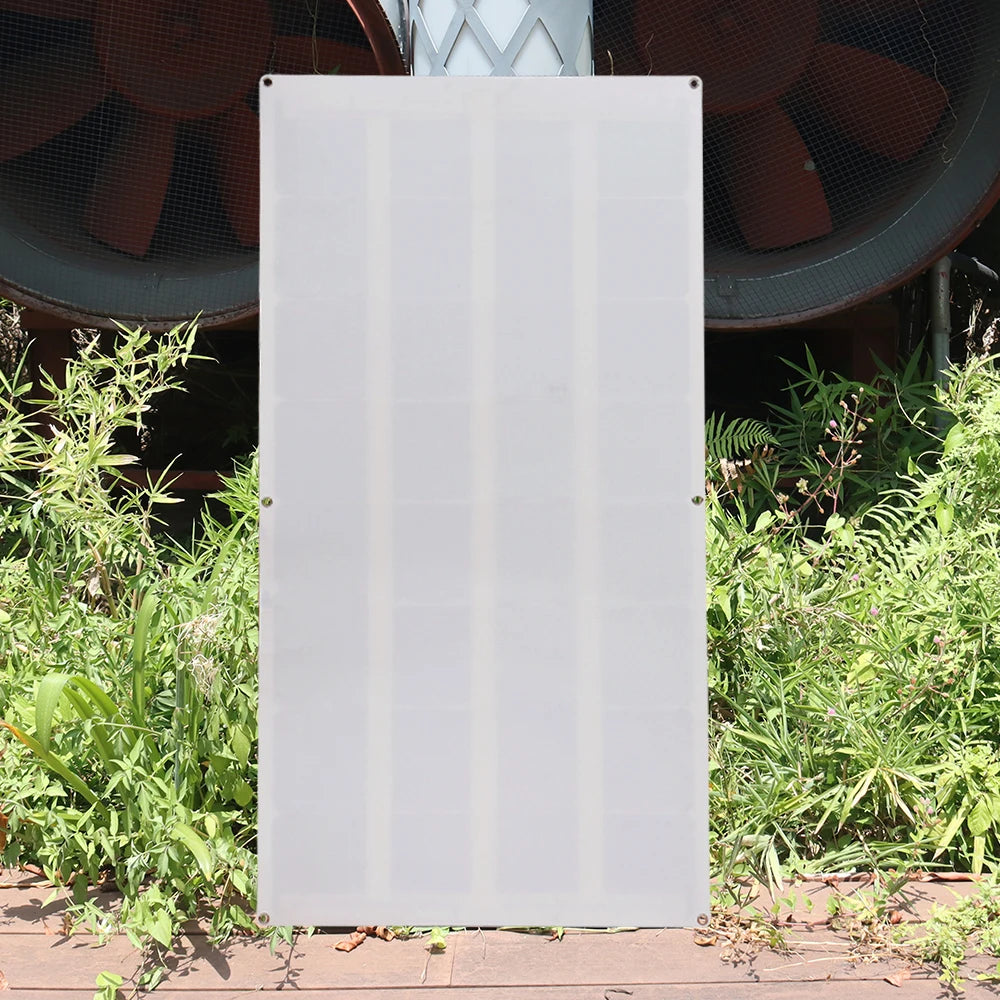

Color White

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Schematic diagram of 1 solar panel connected to 12V battery

Schematic diagram of 2 pcs solar panel connected to 12V battery

Schematic diagram of 2 pcs solar panel connected to 24V battery
