SPECIFICATIONS



Brand Name: ATOMSTACK

Model Number: A20 PRO V2

Certification: GS

Certification: CE

Is Smart Device: YES

A10 PRO V2 Laser Output Optical Power: 12W

A20 PRO V2 Laser Output Optical Power: 24W

Engraving Size: 400 * 400mm

Maximum Speed: 30000mm/min

Laser Wavelength: 455±5nm

Engraving Accuracy: 0.02mm

Connection Method: USB,Wi-Fi 2.4G

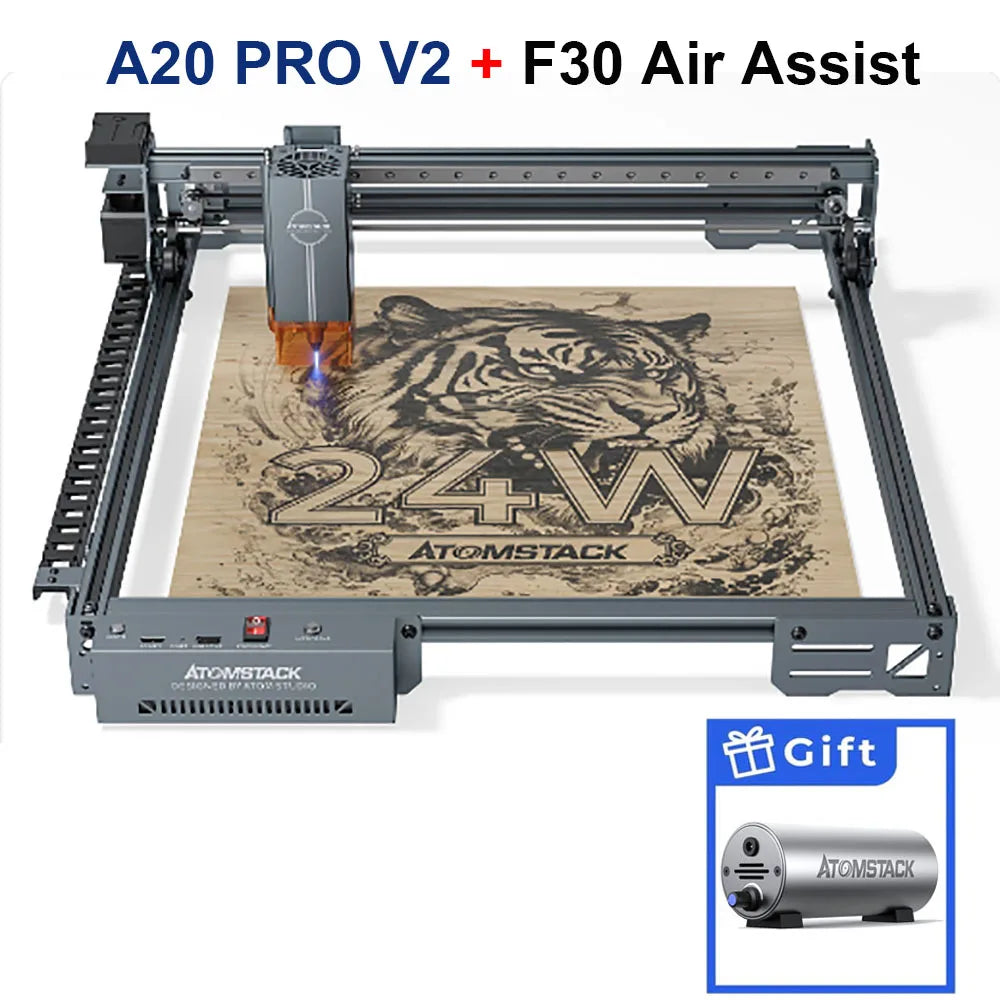

Atomstack A10 A20 Pro V2 Laser Engraver Machine 12W 24W Output CNC DIY Laser Cutting And Engraving Metal Wood Acrylic PCB Board

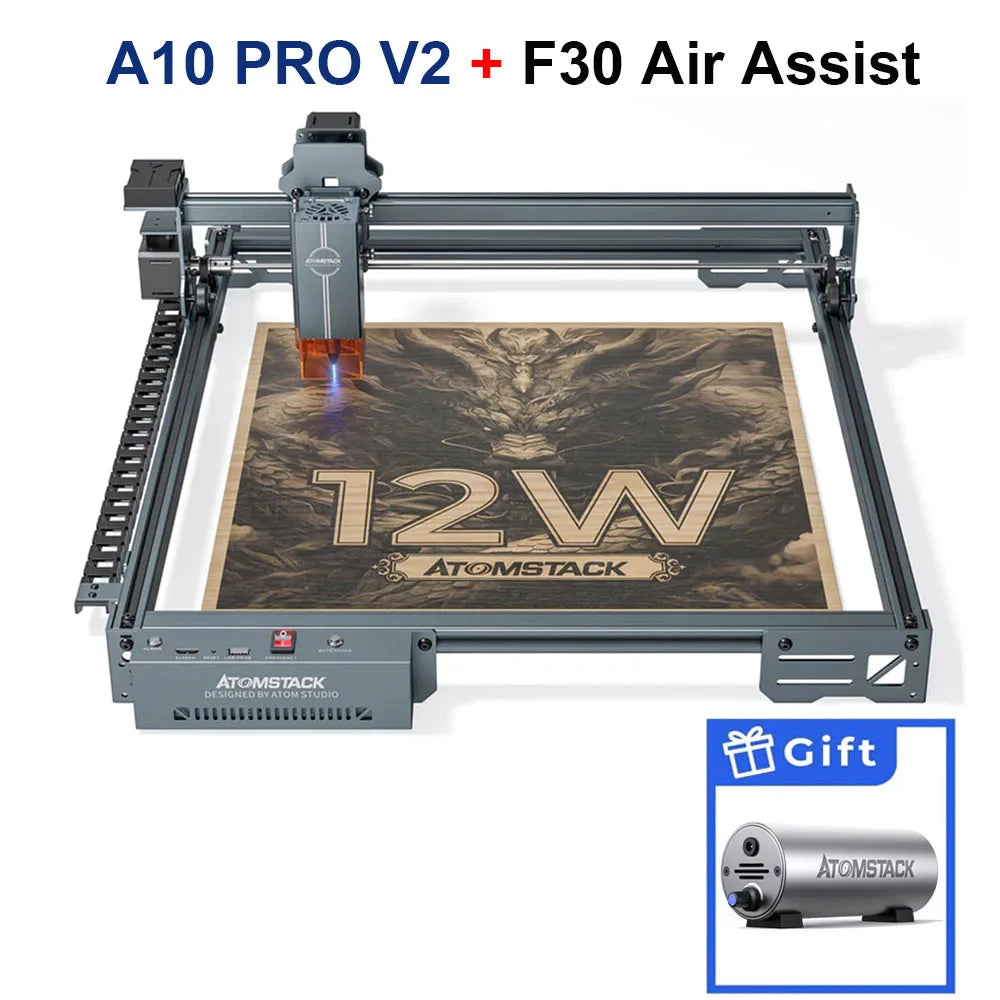

AtomStack Ace Pro V2 Laser Engraver Description

【New upgraded series】AtomStack Ace Pro V2 includes three machines with different laser output powers (A10 Pro V2 12W/A20 Pro V2 24W/A40 Pro V2 48W).

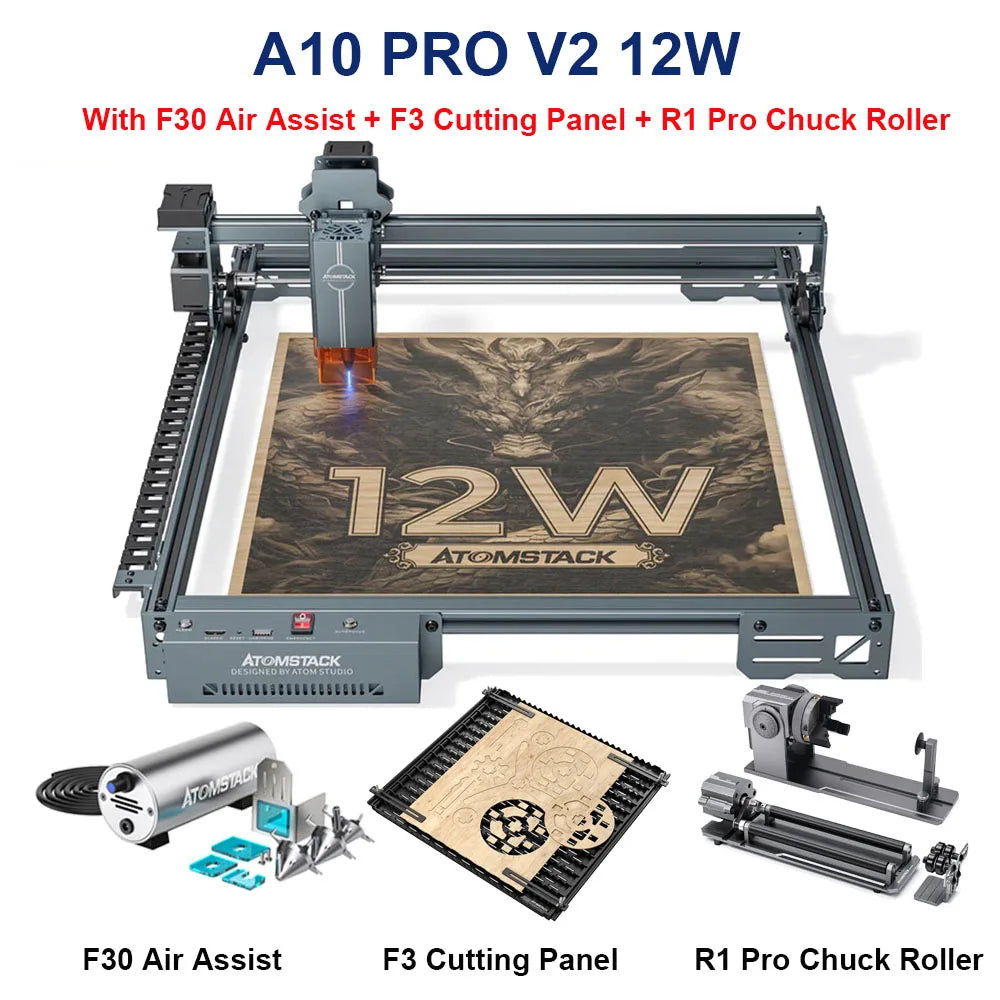

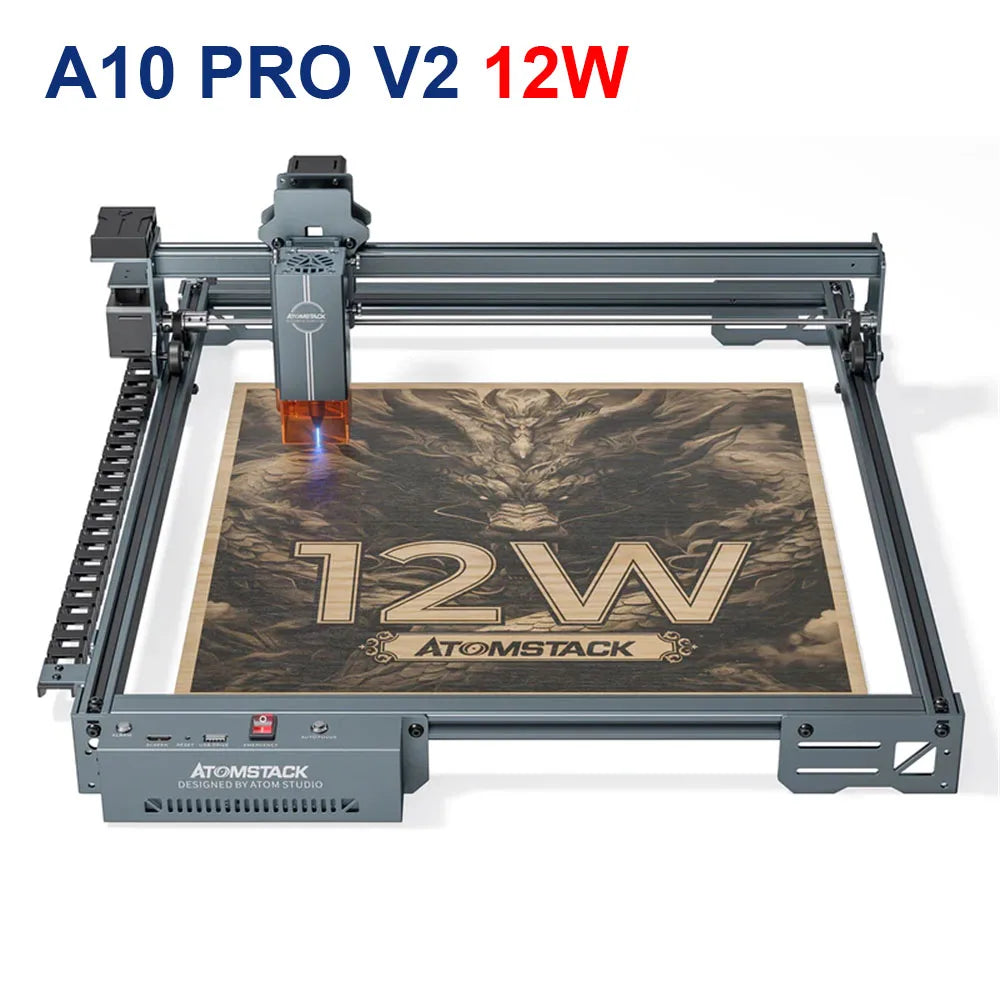

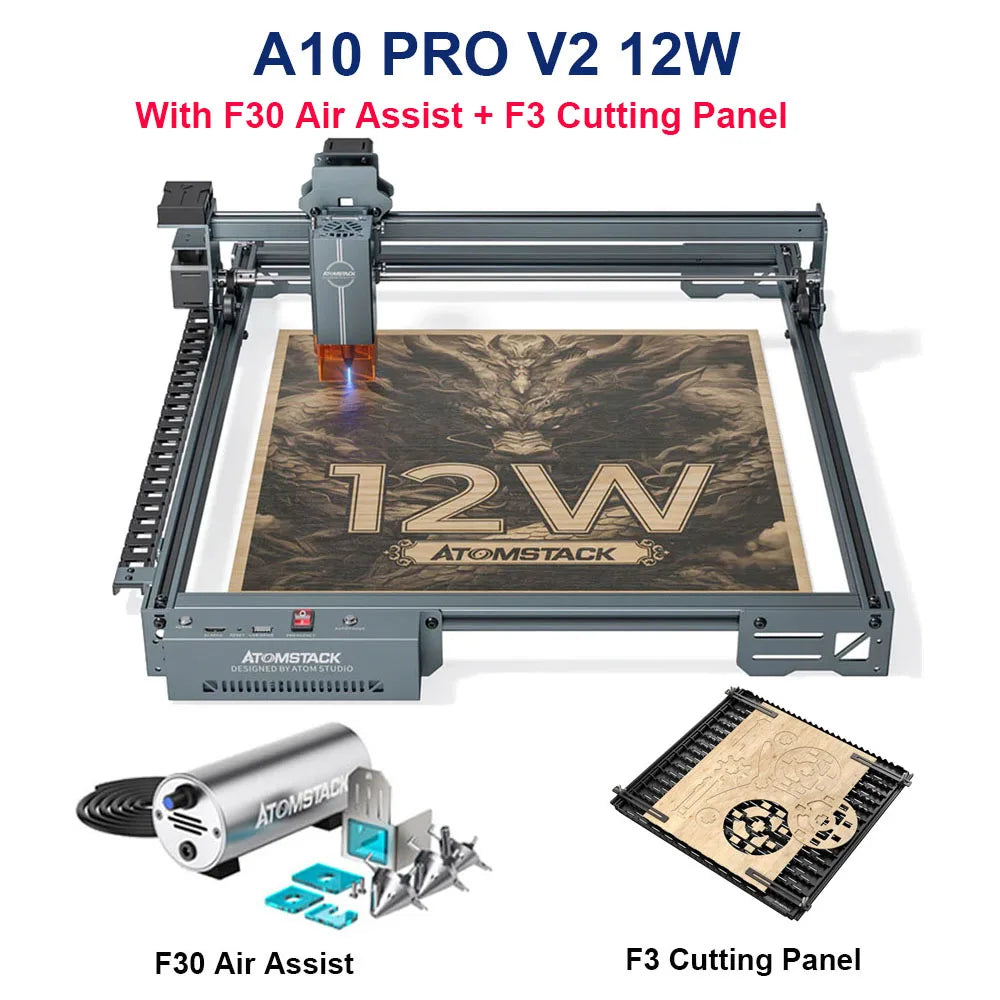

【A10 Pro V2】A10 Pro V2 can cut a 3-12mm wood board or 5mm acrylic in ONE PASS, with a maximum of 15mm in multiple passes. It works perfectly for engraving and cutting paper, wood, leather, acrylic, metal, etc.

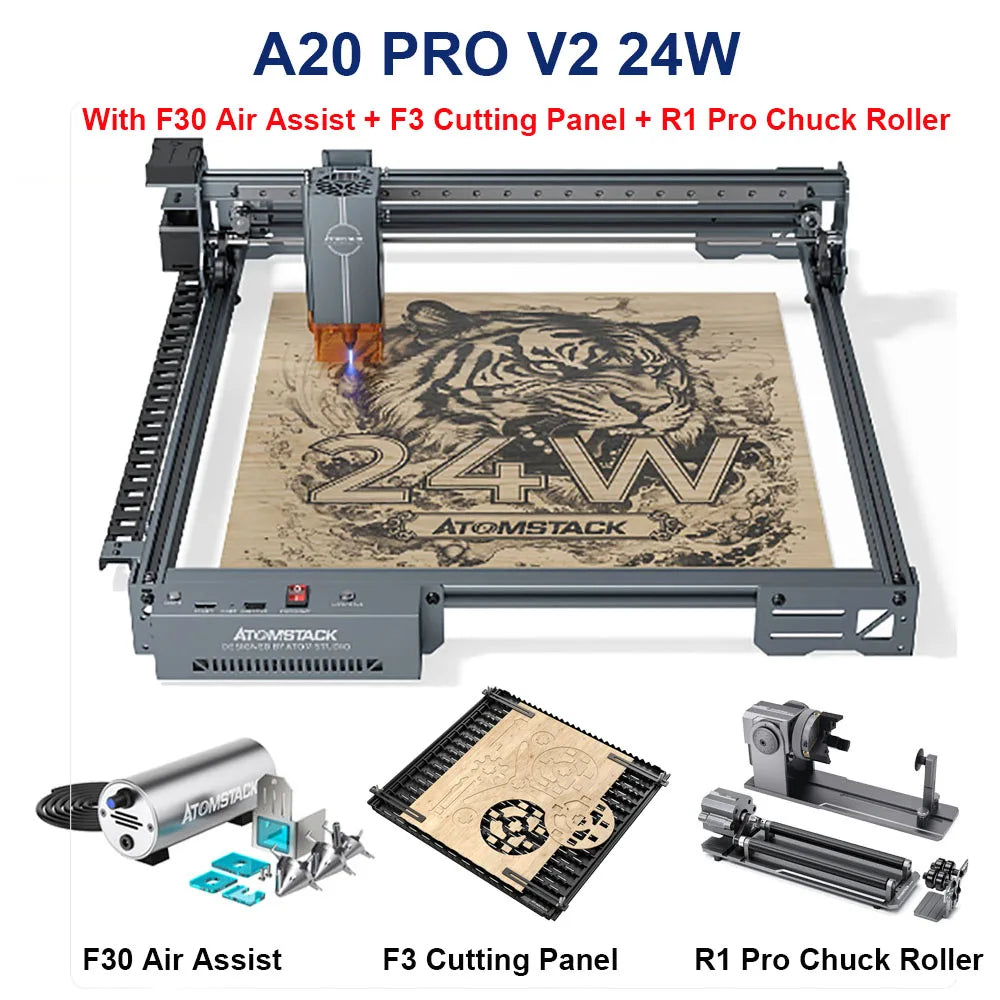

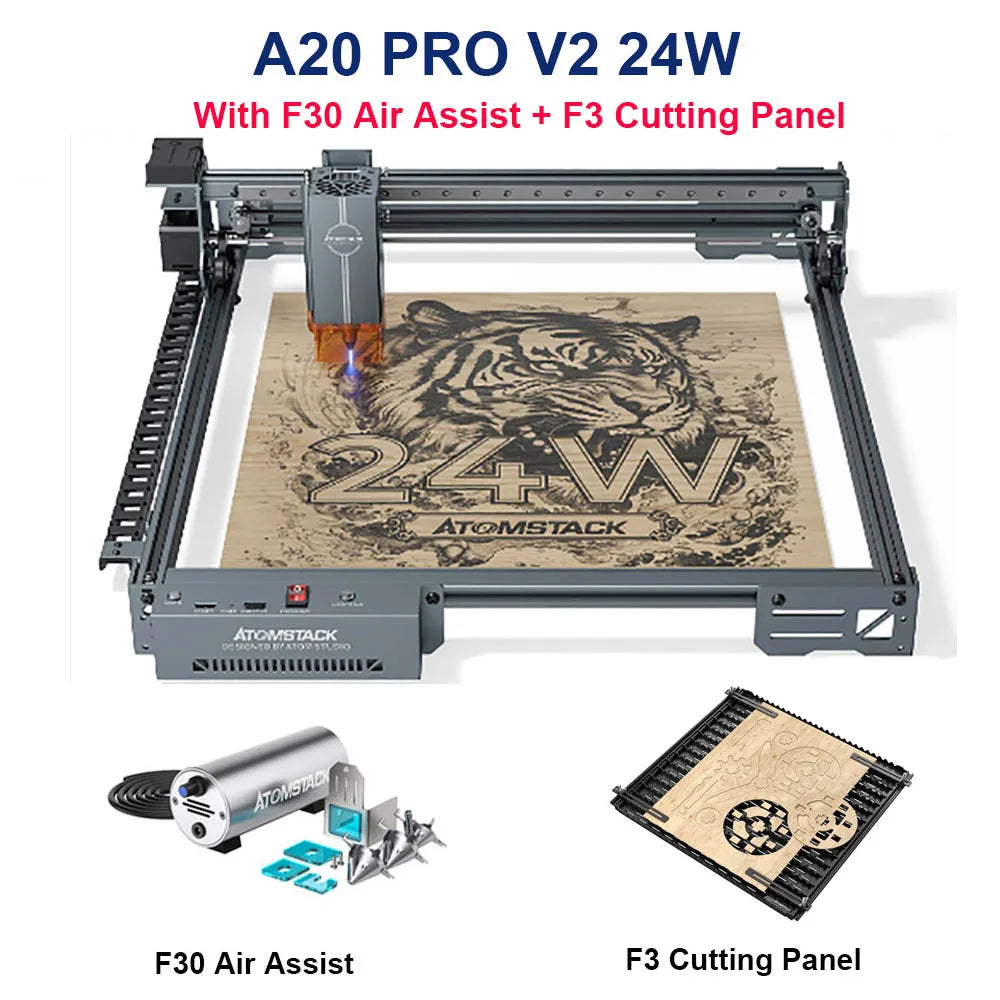

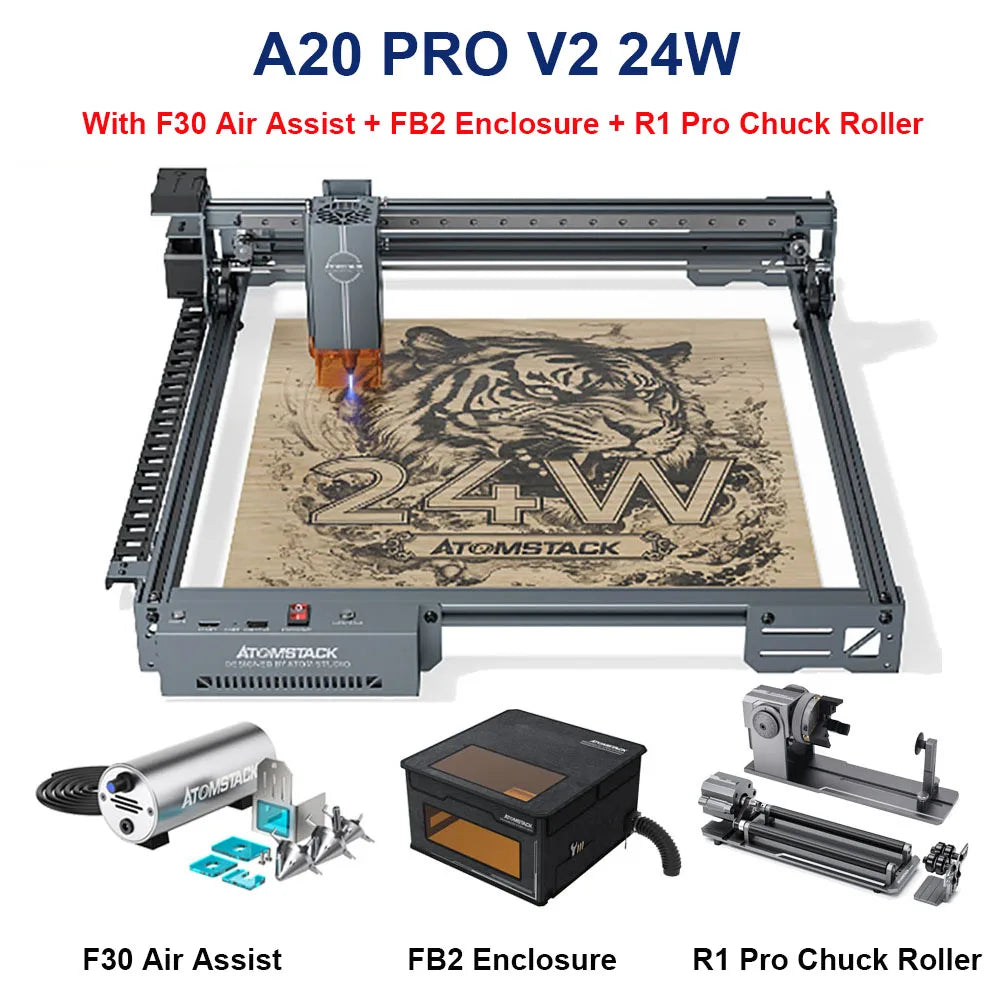

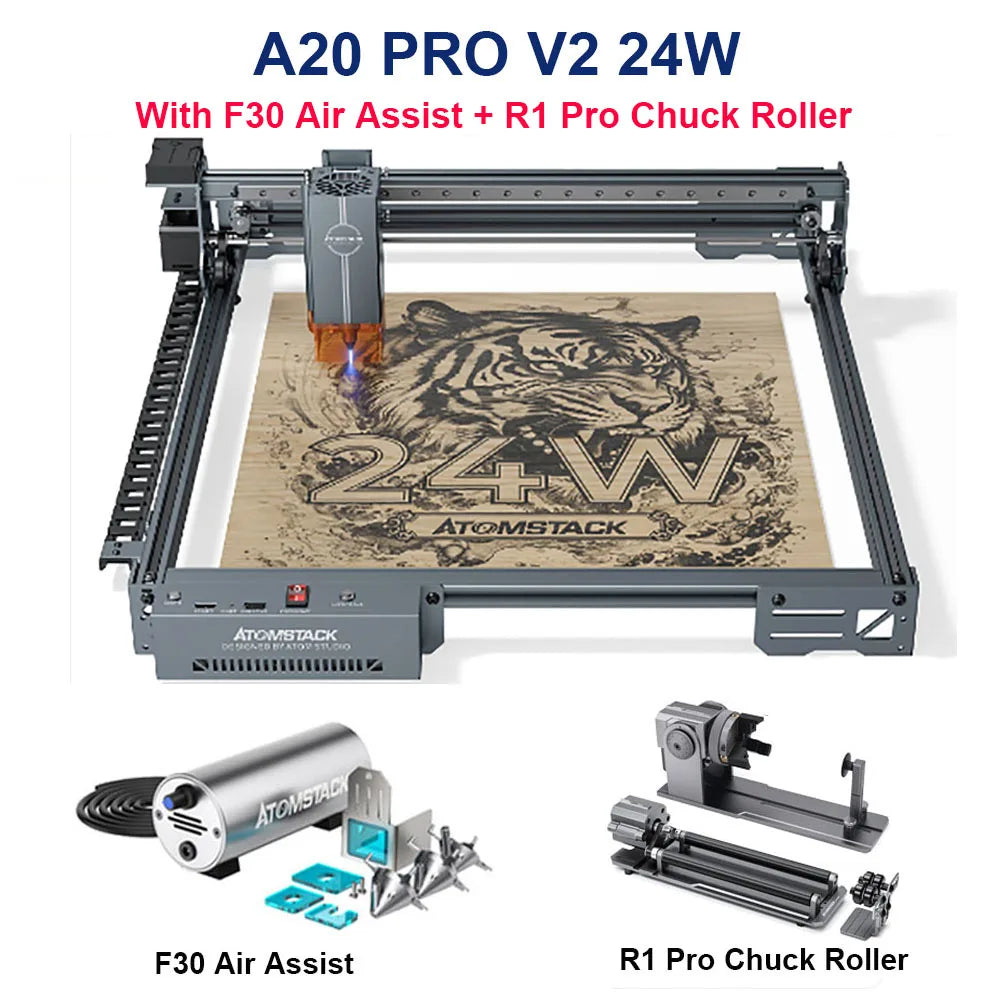

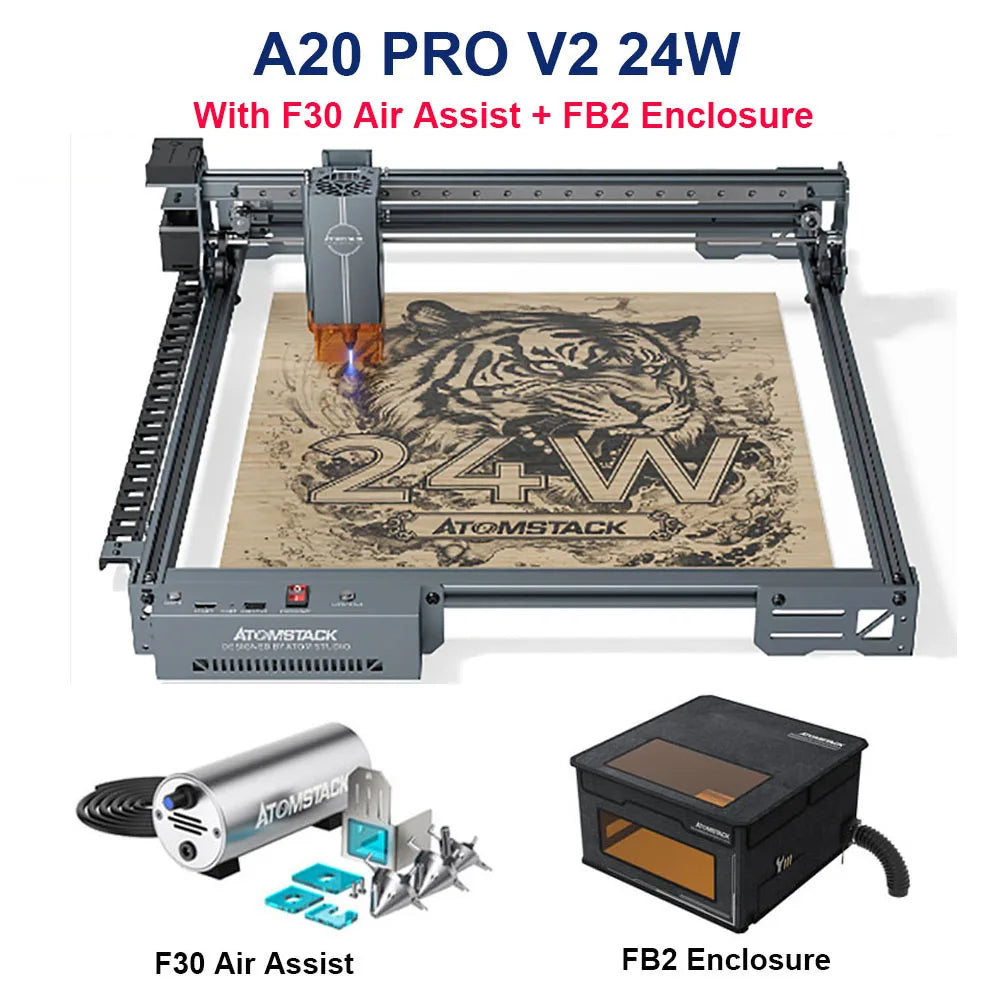

【A20 Pro V2】A20 Pro V2 provides excellent cutting capabilities. With a cutting capacity of up to 10mm for wood and 8mm for black acrylic in a single pass, it rivals industrial CNC machines. Perfect for woodworking, intricate designs, and jewelry crafting, this machine offers solid cutting performance.
【Precision and Efficiency in Engraving and Cutting】Equipped with compressed spot technology (A10 Pro V2: 0.06*0.08mm, A20 Pro V2： 0.08*0.10mm), the Ace Pro V2 ensures pristine cuts and engravings. Operating at a maximum speed of 30000mm/min, it guarantees swift and efficient laser processing. Ideal for small business owners seeking fast batch engraving and cutting, personalized gifts, and customized items.
【Expanded Engraving Area and Enhanced Features】Featuring a generous engraving area of 400*400mm and built-in cross positioning, the Ace Pro V2 offers enhanced precision and versatility. Additional highlights include auxiliary directional assistance, ensuring even greater accuracy and control over your projects.
【High-Quality Software for Beginners】The Ace PRO V2 comes equipped with advanced features such as a blue light semiconductor laser, precise control algorithm, and durable slide rails. It can connect to Windows through USB by downloading the user-friendly software Lightburn or LaserGRBL, while you can download the app directly to your phone.
【Unleash Your Creativity】With the Ace PRO V2 laser engraver and cutter, unleash your creative potential and accelerate your small business or side hustle. Capable of working with a wide range of materials including wood, acrylic, metal, glass, leather, and fabric, it enables the creation of diverse projects. Whether crafting custom desk organizers, holiday cards, or metal business cards, this machine empowers limitless DIY possibilities.
【Safety Protection & Assurance】ATOMSTACK cutter and engraver machine includes a safety lock, position movement detection, limit switches, and eye protection, ensuring your safety during usage. The safety lock keeps your machine under control, and position movement detection means that if the machine tilts at an angle of 15-20 degrees, it will sound an alarm and stop working. The 2-way X&Y axis limit switches prevent equipment from colliding with edges. Eye protection shields and glasses are designed to protect the user's eyes from harsh beams.

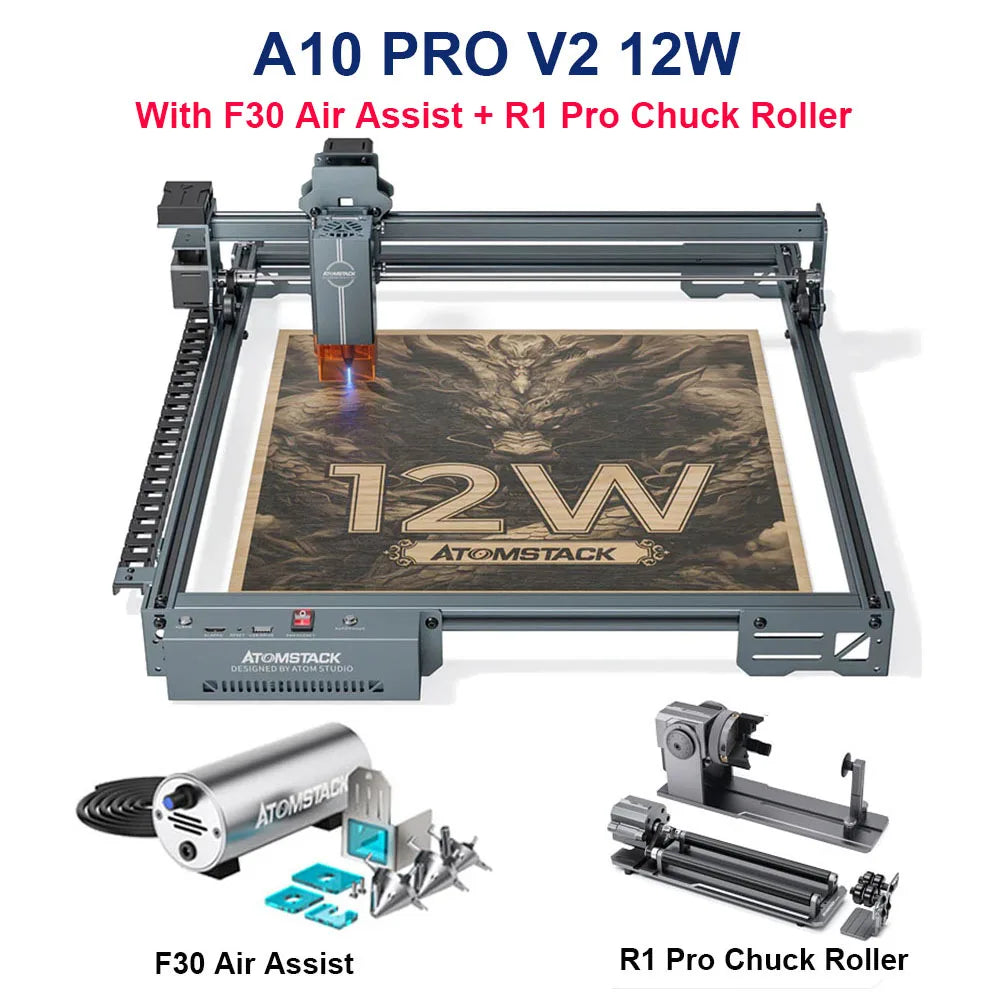

AtomStack A10 Pro V2 Laser Engraver Specification

Product Model:A10 Pro V2
Device Size:574.75 * 640 * 192.65mm
Engraving Size:400 * 400mm
Working Principle:Engraving / Cutting
Engraving Materials:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate.
Cutting Materials:Cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge.
Input Power:60W
Output Power: 12W
Maximum Speed:30000mm/min
Laser Wavelength:455±5nm
Engraving Accuracy:0.02mm
Spot Size:0.06*0.08mm
Joint Structure:POM Wheels
Connection Method:USB、Wi-Fi 2.4G
Supported Devices: Mobile: Android, iOS
Supported Operating Systems: Windows, mac OS
Software:LightBurn、LaserGRBL、Atomstack PC、Atomstack APP
Driver Update: AtomStack APP or USB drive
Supported Formats:JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Focus Adjustment Method:Automatic focus + Manual focus
The automatic focus requires support from the Z2 Z-axis slider
(Pre-sales will start in mid-March)
Tip-over Alarm:Tipping angle>15°, buzzer prompts
Cross Positioning:Yes
Flame detection:Yes, it requires support from the Z2 Z-axis slider
(Pre-sales will start in mid-March)
Resume Engraving:Yes
Quality Certification:IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA

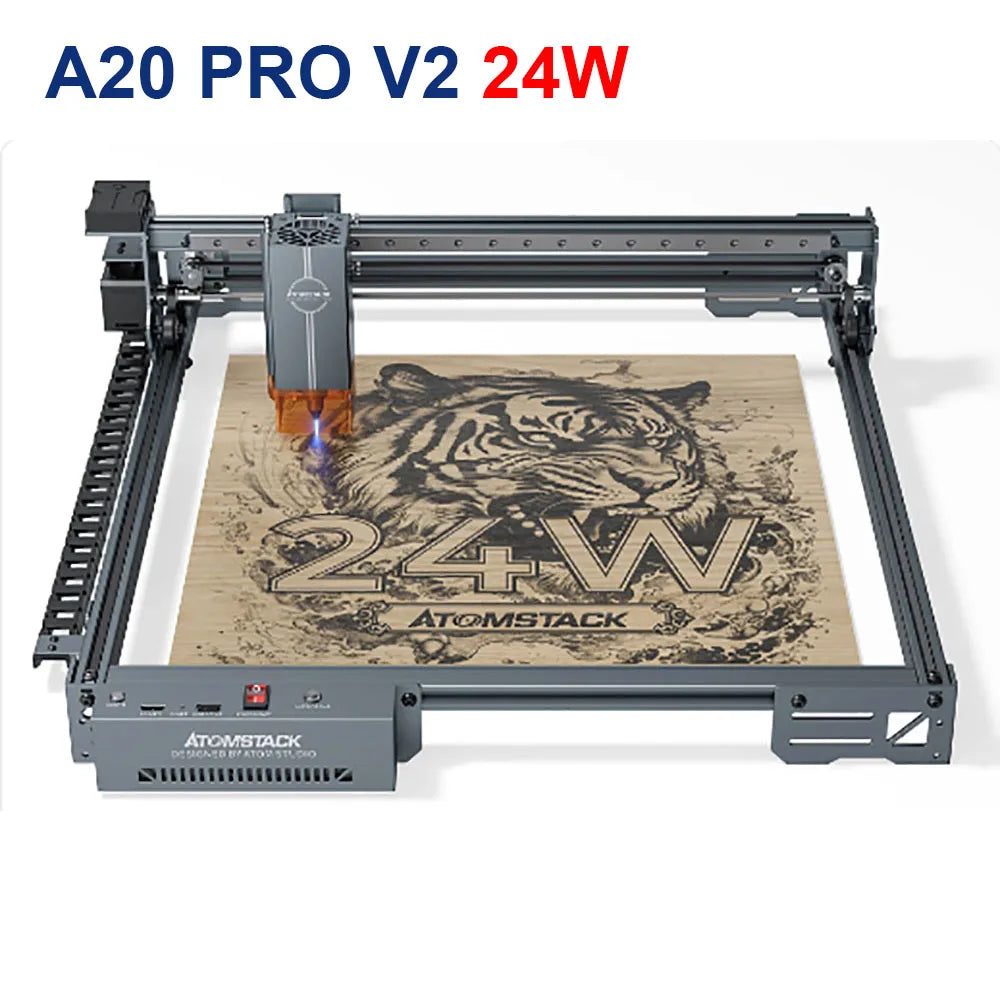

AtomStack A20 Pro V2 Laser Engraver Specification

Product Model:A20 Pro V2
Device Size:574.75 * 640 * 192.65mm
Engraving Size:400 * 400mm
Working Principle:Engraving / Cutting
Engraving Materials:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate.
Cutting Materials:Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge.
Input Power:120W
Output Power: 24W
Maximum Speed:30000mm/min
Laser Wavelength:455±5nm
Engraving Accuracy:0.02mm
Spot Size:0.08*0.10mm
Joint Structure:POM Wheels
Connection Method:USB、Wi-Fi 2.4G
Supported Devices: Mobile: Android, iOS
Supported Operating Systems: Windows, mac OS
Software:LightBurn、LaserGRBL、Atomstack PC、Atomstack APP
Driver Update: AtomStack APP or USB drive
Supported Formats:JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Focus Adjustment Method:Automatic focus + Manual focus
The automatic focus requires support from the Z2 Z-axis slider
Tip-over Alarm:Tipping angle>15°, buzzer prompts
Cross Positioning:Yes
Flame detection:Yes, it requires support from the Z2 Z-axis slider
(Pre-sales will start in mid-March)
Resume Engraving:Yes
Quality Certification:IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA

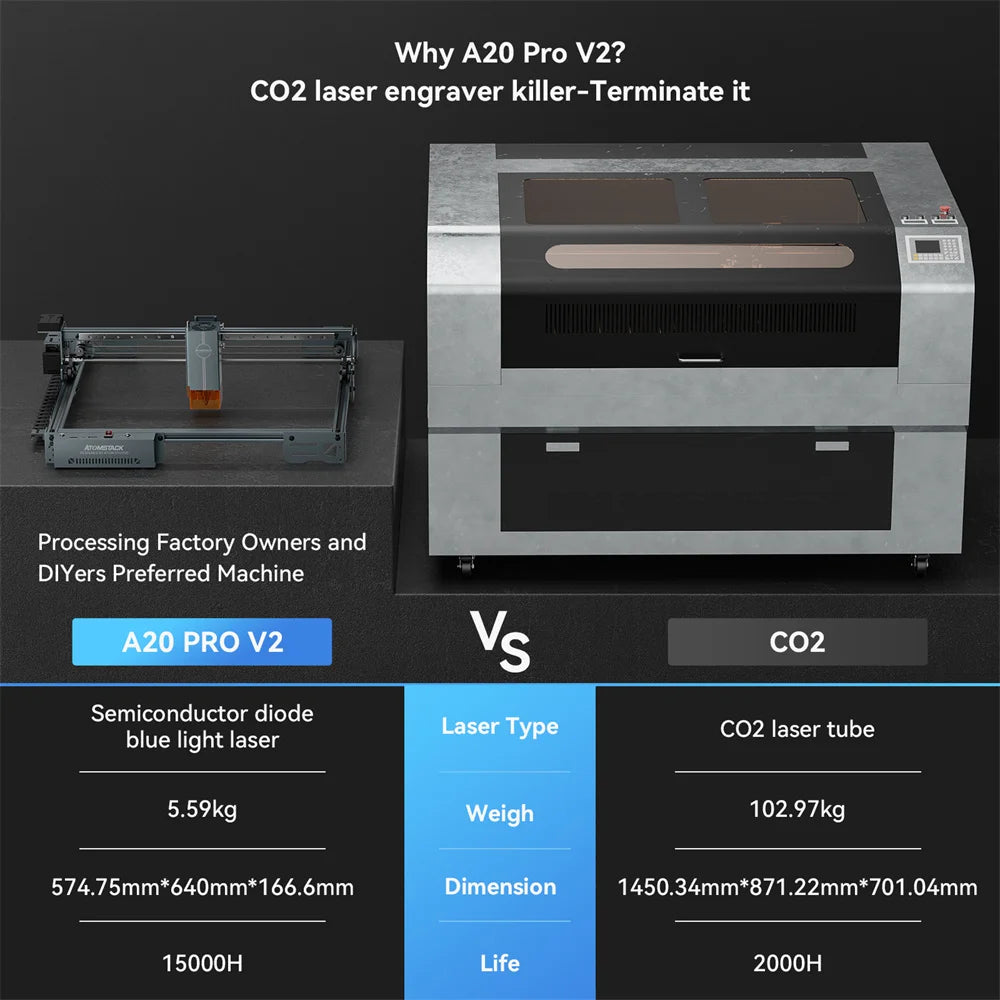

Why choose A20 PRO V2?

CO2 laser engraver killer-terminate it!

Processing factory owners and DIYers perferred machine!
A10 PRO V2 laser type:semiconductor diode blue light laser
A20 PRO V2 weight:5.59kg
A20 PRO V2 dimension:574.75*640*166.6mm
A20 PRO V2 Life:15000H

Reinforced frame and shaft adopted,sturdy,stable plus speedy

Optical power up to 24W, perfect compressed laser spot

Cross positioning system, precise and horizontal engraving

Support various material cutting

Cutting material: thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge

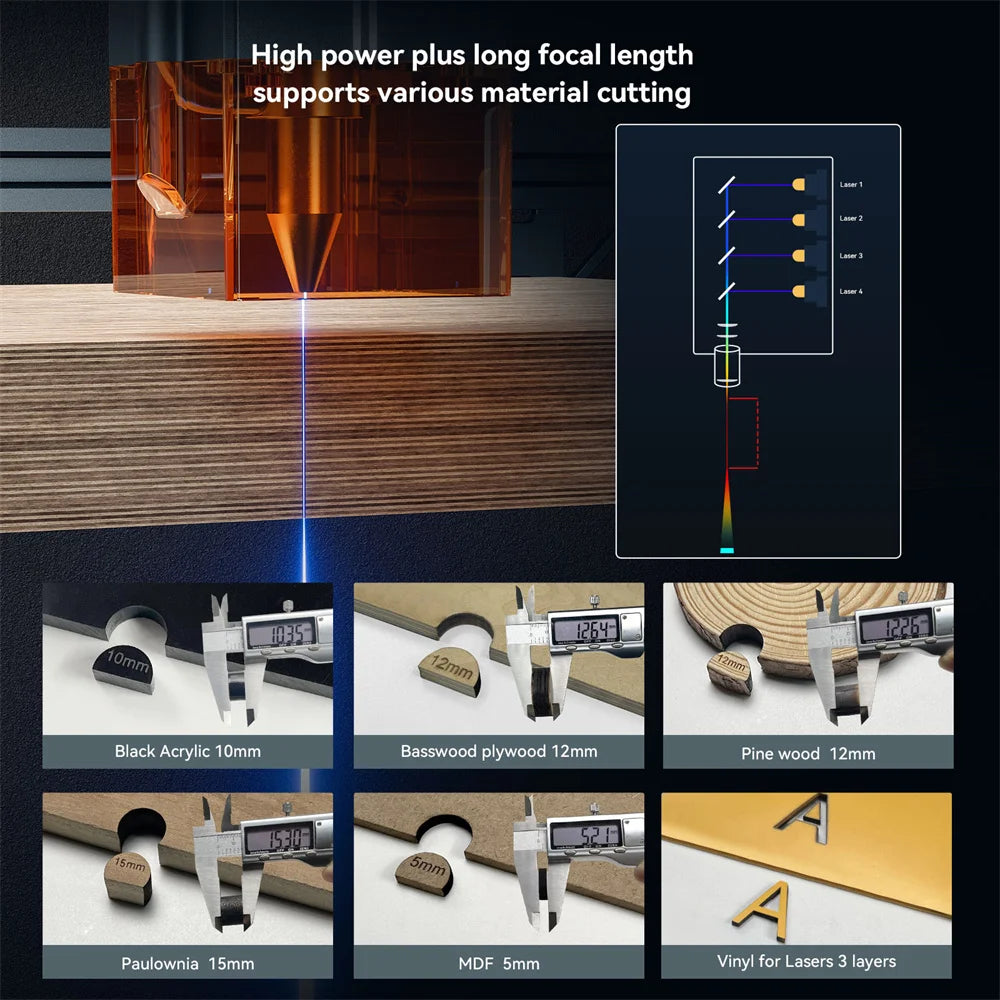

High power plus long focal length supports various material cutting

Black acrylic 10mm
Basswood plywood 12mm
Pinewood 12mm
Paulownia 15mm
MDF 5mm
Vinyl for lasers 3 layers

Aluminum alloy frame,machine runs reliably and precisely the mechanical precision can reach 0.02mm

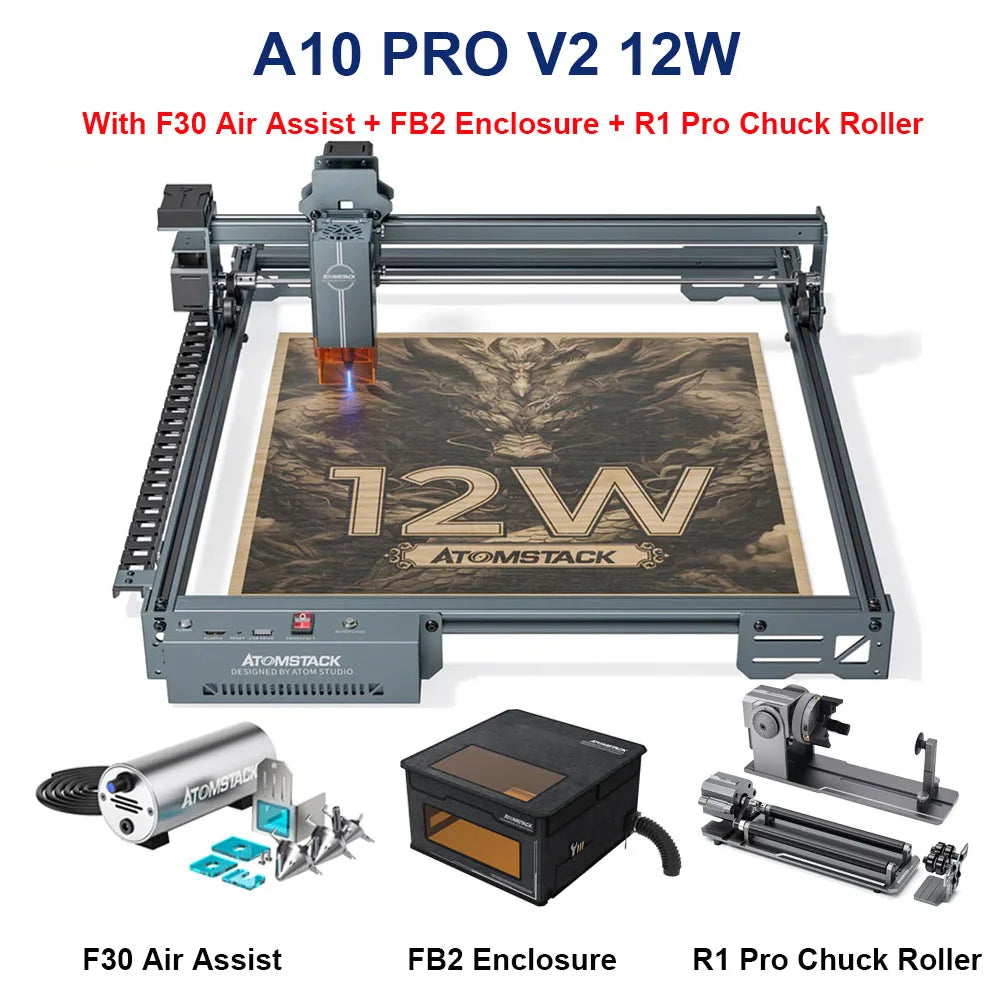

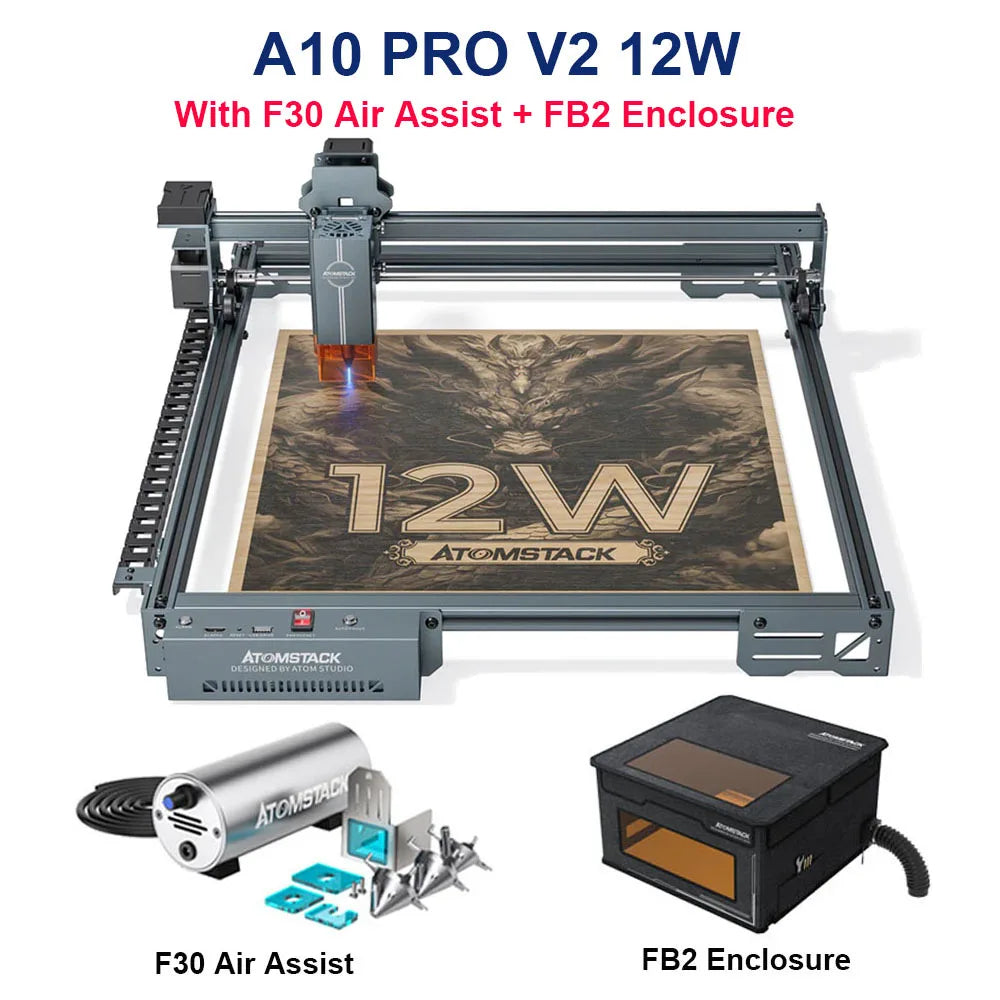

Complete accessories to purchase

Strong compatibility achieves infinite creations

Brand new chip motherboard smart and easy to use

Full Safeguard in Machine Working

Atomstack Self-Developed PC Software

More features,more user-friendly human-computer interaction,more creative and sharing experts

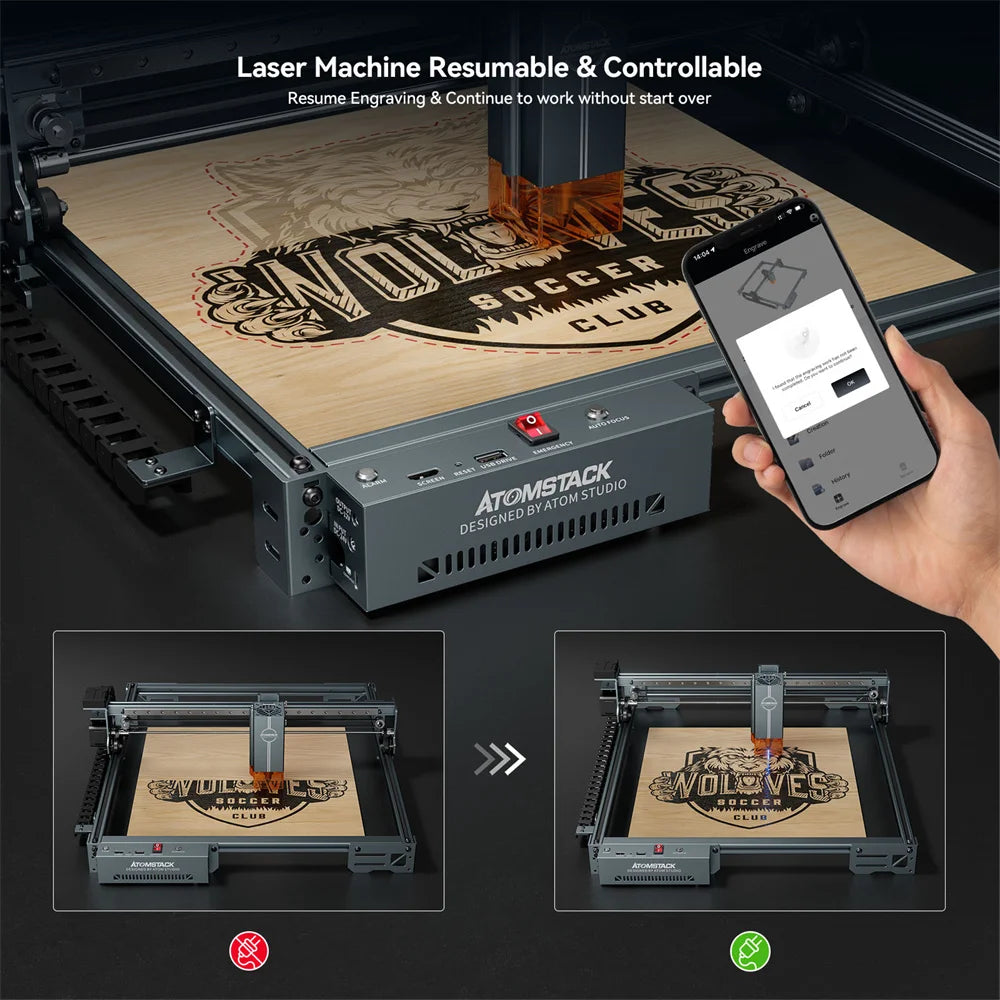

Laser Machine Resumable & Controllable

Resume engraving & continue to work without start over

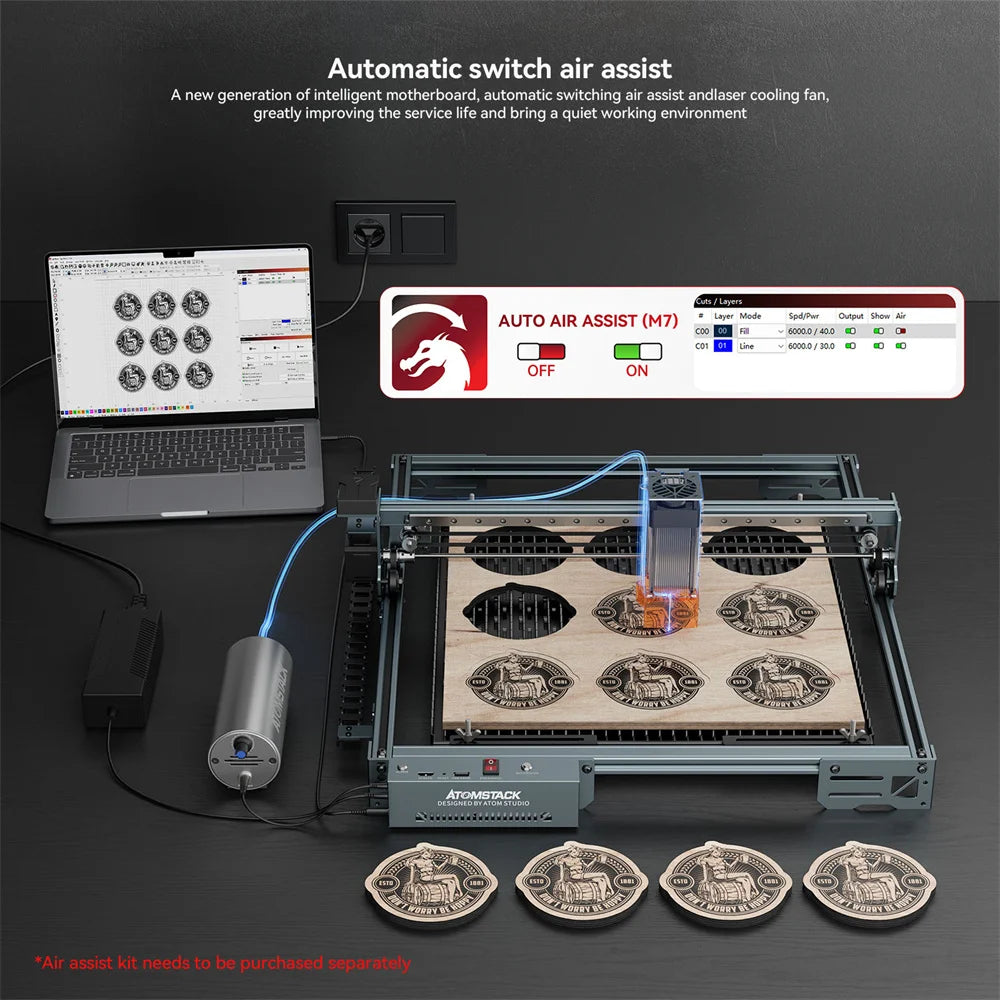

Automatic switch air assist

A new generation of intelligent motherboard,automatic switching air assist and laser cooling fan,greatly improving the service life and bring a quite working environment.
